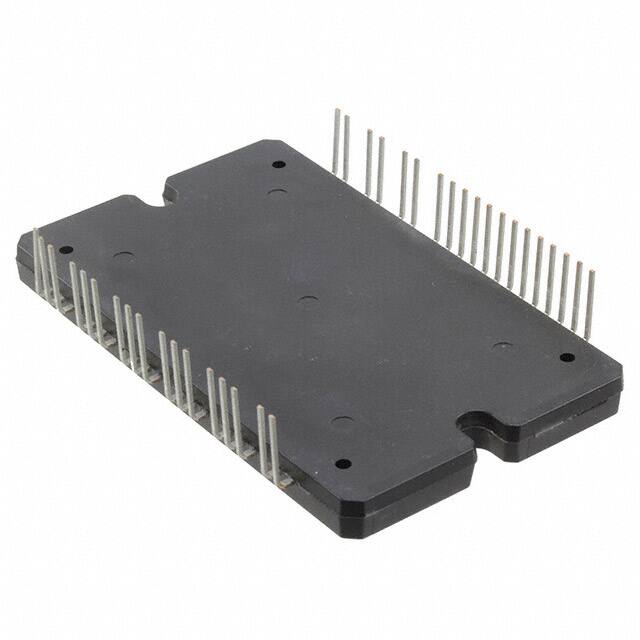

The STK5F1U3C2D-E from On Semiconductor is a hybrid inverter module featuring IGBT technology. It is designed for AC motor applications and provides a 3-phase half-bridge output configuration.
This module offers a maximum load voltage of 450V and can handle an output current of 30A, with a peak output current of 49A. It includes fault protection features such as current limiting and UVLO (Under Voltage Lockout), along with a status flag for monitoring.
The STK5F1U3C2D-E is suitable for inductive loads and operates within a temperature range of -40°C to 150°C (TJ). It is mounted using a through-hole method and comes in a 44-DIP Module package with 37 leads.
Key electrical specifications include a supply voltage range of 12.5V to 17.5V and logic-level interface. The part is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output configuration is Half Bridge (3).
It is designed for AC Motors.
The continuous output current is 30A.
The maximum load voltage is 450V.
It includes Current Limiting and UVLO.
The operating temperature range is -40°C to 150°C (TJ).
The package is a 44-DIP Module with 37 Leads.
