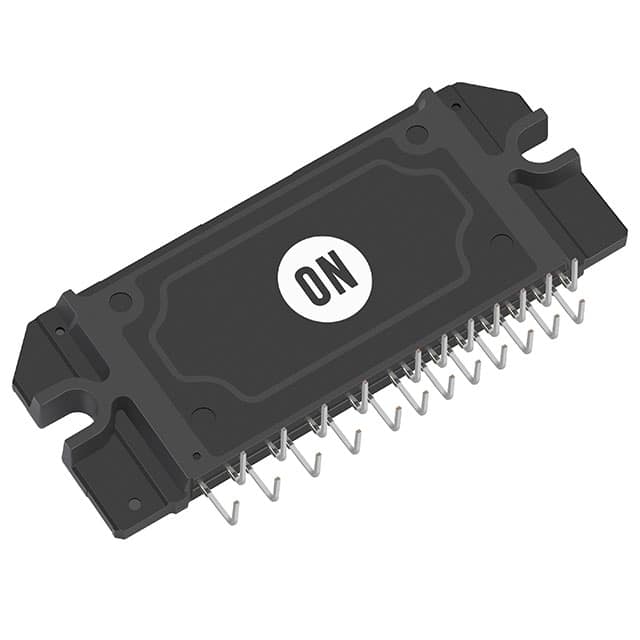

STK554U392C-E The STK554U392C-E is a 600V, 15A 3-phase inverter intelligent power module from On Semiconductor. It features an IGBT type and through-hole mounting.
Mfr Part #:

STK554U392C-E

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The STK554U392C-E is a 600V, 15A 3-phase inverter intelligent power module from On Semiconductor. It features an IGBT type and through-hole mounting.
✓ Total Stock: 1,290 pcs
$ Price Range: $0.99

STK554U392C-E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,290 pcs
On Request
1290 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STK554U392C-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Lead Style
Mounting Type
SVHC Present
Type
Voltage
View Similar Products (0)

STK554U392C-E Description

Short technical summary and product information.

The STK554U392C-E from On Semiconductor is a fully integrated inverter power stage designed for driving various motor types. This intelligent power module (IPM) operates at 600V and handles up to 15A, utilizing IGBT technology.



Key electrical specifications include a typical VCE(sat) of 1.7V and a typical VF of 1.9V. The module is configured as a 3-phase inverter and includes integrated drivers. It offers protection functions such as cross-conduction protection, external shutdown, and under-voltage lockout.



Packaged in a 29-SSIP module with 21 leads and formed leads, this component is designed for through-hole mounting. Its robust design makes it suitable for industrial applications like pumps, fans, and automation systems.



The STK554U392C-E is RoHS3 compliant and has an MSL rating of 1.

STK554U392C-E Quick Information

Product Type: Intelligent Power Module
Canonical Name: STK554U392C-E Intelligent Power Module (IPM)
Subcategory: Intelligent Power Module (IPM)

STK554U392C-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STK554U392C-E Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

STK554U392C-E Features

  • 600V, 15A 3-phase inverter IGBT module.
  • Integrated drivers with protection functions.
  • Typical VCE(sat) of 1.7V.
  • Through-hole mounting package.
  • RoHS3 compliant.

STK554U392C-E Applications

  • Suitable for PMSM motor driving.
  • Used for BLDC motor driving.
  • Ideal for AC asynchronous motors.
  • Applications in industrial pumps.
  • Used in industrial fans.

STK554U392C-E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the STK554U392C-E?

The voltage rating is 600 V.

What is the current handling capability of the STK554U392C-E?

The current handling capability is 15 A.

What type of technology does the STK554U392C-E use?

The STK554U392C-E uses IGBT technology.

How is the STK554U392C-E mounted?

The STK554U392C-E is mounted through hole.

What is the package type for the STK554U392C-E?

The package type is 29-SSIP Module, 21 Leads, Formed Leads.
