STHDLS101TQTR
STMicroelectronics

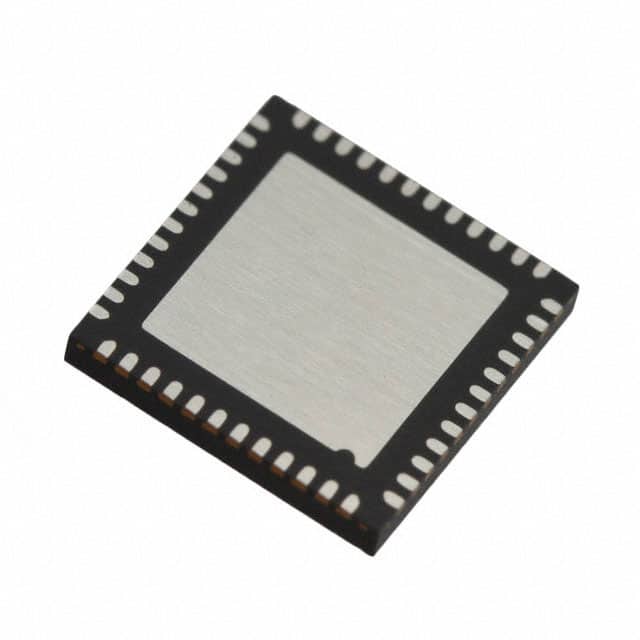

The STHDLS101TQTR is an IC video level shifter with 2 channels, designed for video processing applications. It features a 48-QFN package and supports dual or single power supply.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,312 pcs
|
11312 pcs | On Request | 1 | On Request | On Request | 0940+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Interface | |
| Function | |
| Lead Spacing | |
| Mounting Type | |
| Standards | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The STHDLS101QTR is an integrated circuit designed for level shifting in video applications. Manufactured by STMicroelectronics, this device functions as a level shifter, specifically tailored for consumer video signals. It operates at a voltage of 3.3V and adheres to the HDMI 1.3 standard, ensuring compatibility with relevant video interfaces.
The IC features a serial control interface, allowing for streamlined integration into complex systems. Its primary application is in consumer video equipment, where precise signal level adjustment is crucial for optimal performance. The device is supplied in a 48-QFN-EP (7x7) package, designed for surface mounting.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions. The REACH status is unaffected. Its compact surface mount package makes it suitable for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.68 | $9.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3.3V.
It is supplied in a 48-QFN-EP (7x7) package, designed for surface mounting.
It supports HDMI 1.3 standards.
The function of the STHDLS101QTR is a Level Shifter.
