The STMicroelectronics STH3N150-2 is a high-voltage N-Channel MOSFET designed for power switching applications. It offers a drain-source breakdown voltage of 1500V and a continuous drain current of 2.5A at a case temperature of Tc.
Key electrical characteristics include a maximum on-resistance (Rds On) of 9 Ohms at 1.3A and 10V Vgs, and a gate-source threshold voltage (Vgs(th)) of 5V at 250µA. The gate charge (Qg) is 29.3 nC maximum at 10V Vgs, and input capacitance (Ciss) is 939 pF maximum at 25V Vds. The MOSFET operates with a drive voltage of 10V and has a maximum gate-source voltage rating of ±30V.
With a maximum power dissipation of 140W (Tc) and an operating junction temperature of 150°C, this device is suitable for demanding thermal environments. It utilizes MOSFET (Metal Oxide) technology and is part of the PowerMESH tradename series.

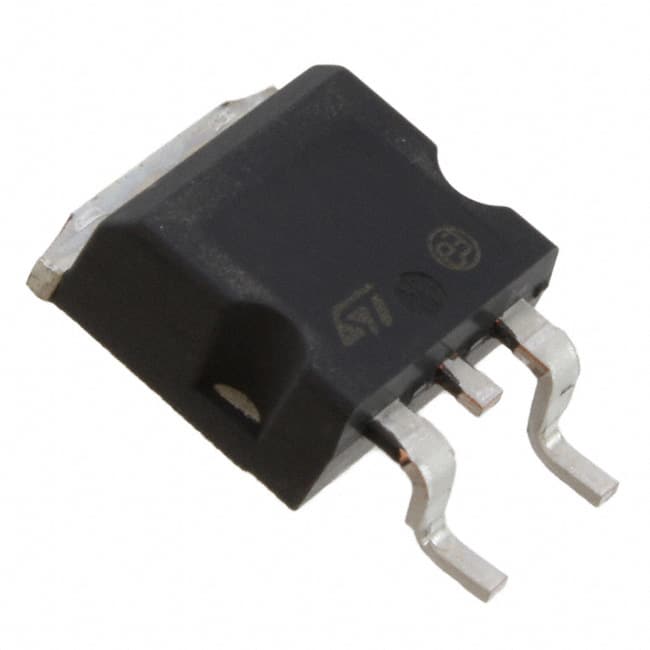

The STH3N150-2 is supplied in a Surface Mount H2PAK-2 package, designed for efficient heat dissipation. The standard package quantity is 1000 units, typically supplied in Cut Tape.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1500 V.
2.5 A at Tc.
9 Ohm at 1.3 A and 10 V gate drive.
H2PAK-2 surface-mount package.
Up to 150 °C.
140 W at Tc.
29.3 nC maximum at 10 V.
