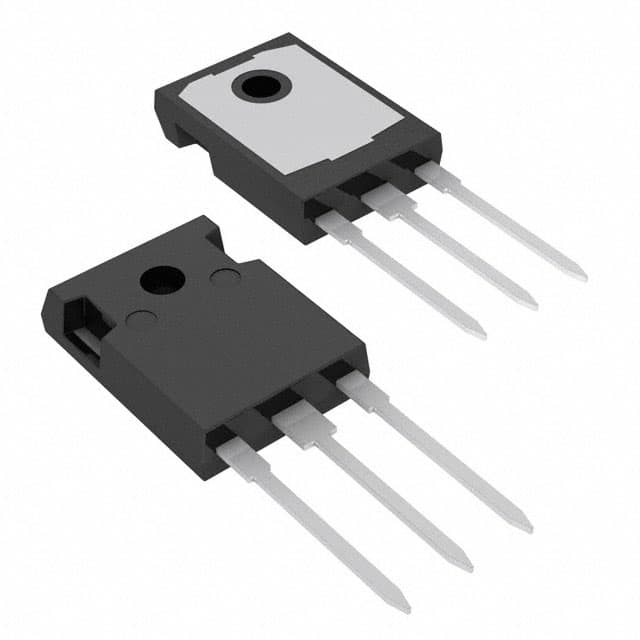

The STGWA60H65DFB is a 650V, 80A IGBT from STMicroelectronics using Trench Field Stop technology. It delivers low saturation voltage and fast switching performance suitable for power conversion. The maximum collector-emitter saturation voltage is 2V at Vge=15V and Ic=60A, and the total gate charge is 306nC.
The device supports a continuous collector current of 80A at 25°C and a maximum power dissipation of 375W. It operates across a junction temperature range of -55°C to +175°C. The TO-247-3 package uses through-hole mounting for reliable soldering and heat dissipation.
This IGBT is designed for high-power switching applications, including power inverters, motor drives, and industrial power supplies. The ±20V gate-emitter voltage rating is compatible with standard gate driver outputs.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.16 | $4.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
650 V.
80 A.
-55°C to +175°C.
TO-247-3.
375 W.
2 V maximum.
Trench Field Stop.
