Mfr Part #:

STGIPS20K60

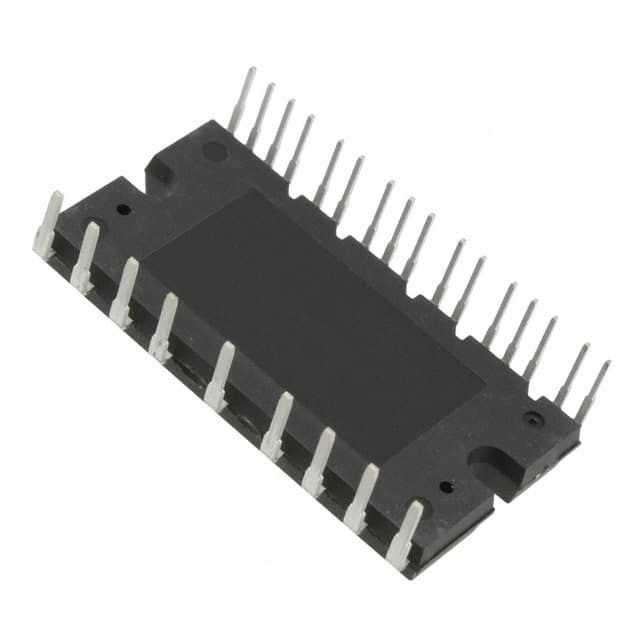

The STGIPS20K60 is a 3-phase IGBT intelligent power module from STMicroelectronics. It offers 17A current and 600V voltage, suitable for motor drive applications.

✓ Total Stock: 2,283 pcs

$ Price Range: $0.99

STGIPS20K60 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,842 pcs On Request	1842 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	441 pcs On Request	441 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

STGIPS20K60 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Power Driver Modules
Manufacturer Name	STMicroelectronics
Configuration	3 Phase
Current	17 A
Mounting Type	Through Hole
SVHC Present	Not Present
Type	IGBT
Voltage	600 V

View Similar Products (0)

STGIPS20K60 Description

Short technical summary and product information.

The STGIPS20K60 is an IGBT intelligent power module (IPM) designed by STMicroelectronics for compact and high-performance AC motor drives. This module integrates a 3-phase IGBT inverter bridge with control ICs for gate driving and free-wheeling diodes.

Key electrical specifications include a current rating of 17 A and a voltage rating of 600 V. It supports 3.3 V, 5 V, and 15 V CMOS/TTL inputs with hysteresis and pull-down/pull-up resistors. The module features an internal bootstrap diode, interlocking function, and VCE(sat) negative temperature coefficient for robust operation.

Designed for applications such as 3-phase inverters for motor drives in home appliances like washing machines, refrigerators, and air conditioners, the STGIPS20K60 utilizes ST's proprietary control ICs and advanced short-circuit rugged IGBT technology. It is housed in a DBC fully isolated SDIP-25L molded package, providing an isolation rating of 2500 Vrms/min.

Mounting is through hole. The module includes features like undervoltage lockout and a smart shutdown function for fault protection against over temperature and overcurrent.

STGIPS20K60 Quick Information

Product Type: Power Driver Module

Canonical Name: STGIPS20K60 IGBT Intelligent Power Module

STGIPS20K60 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

STGIPS20K60 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

STGIPS20K60 Features

17A, 600V 3-phase IGBT inverter bridge.
Integrated control ICs for gate driving.
Internal bootstrap diode and interlocking function.
Short-circuit rugged IGBTs and smart shutdown.
DBC fully isolated SDIP-25L molded package.

STGIPS20K60 Applications

Used in 3-phase inverters for motor drives.
Suitable for washing machine applications.
Ideal for refrigerator motor control.
Applicable to air conditioner systems.

STGIPS20K60 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating of the STGIPS20K60?

The STGIPS20K60 has a current rating of 17 A.

What is the voltage rating of the STGIPS20K60?

The STGIPS20K60 has a voltage rating of 600 V.

What type of package is the STGIPS20K60 in?

The STGIPS20K60 is in a 25-PowerDIP Module (0.993", 25.23mm) package.

How is the STGIPS20K60 mounted?

The STGIPS20K60 is mounted through hole.

What is the RoHS status of the STGIPS20K60?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the STGIPS20K60?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the REACH status for the STGIPS20K60?

The REACH status is REACH Unaffected.
