STGIB15CH60S-L
STMicroelectronics
The STMicroelectronics STGIB15CH60S-L is an IGBT 3-Phase Inverter Power Driver Module. It offers a voltage rating of 1500Vrms and a current capacity of 20A.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,956 pcs
|
1956 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Mounting Type | |
| Type | |
| Voltage |

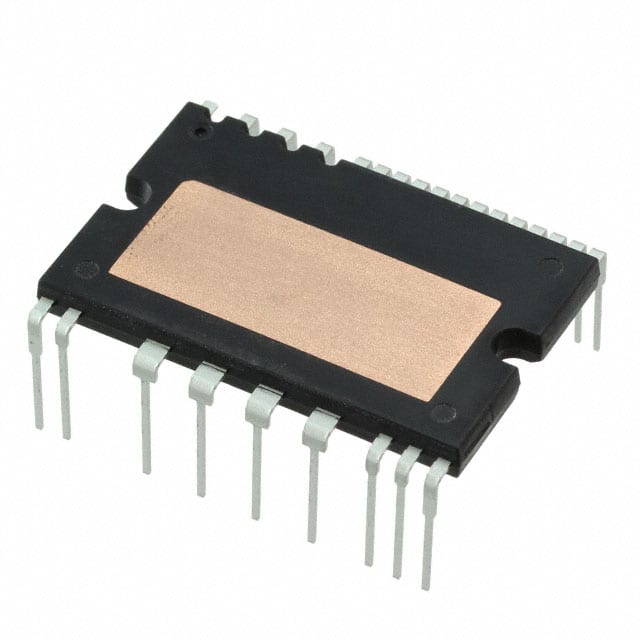

The STMicroelectronics STGIB15CH60TS-L is an IGBT Power Driver Module belonging to the SLLIMM(TM) 2nd Series IPM family. This module is configured as a 3-phase inverter, suitable for demanding power applications.
Key electrical specifications include a high voltage rating of 1500Vrms and a current carrying capacity of 20A. The module utilizes IGBT technology for efficient power switching.
Designed for through-hole mounting, the STGIB15CH60TS-L comes in a 26-PowerDIP Module package measuring 1.134 inches (28.80mm). Its robust construction and specifications make it suitable for various industrial power control systems.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating, indicating suitability for a wide range of manufacturing environments. REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 1500Vrms.
The current rating is 20 A.
It is an IGBT module configured as a 3-phase inverter.
It is designed for through-hole mounting.
The package is a 26-PowerDIP Module (1.134", 28.80mm).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
