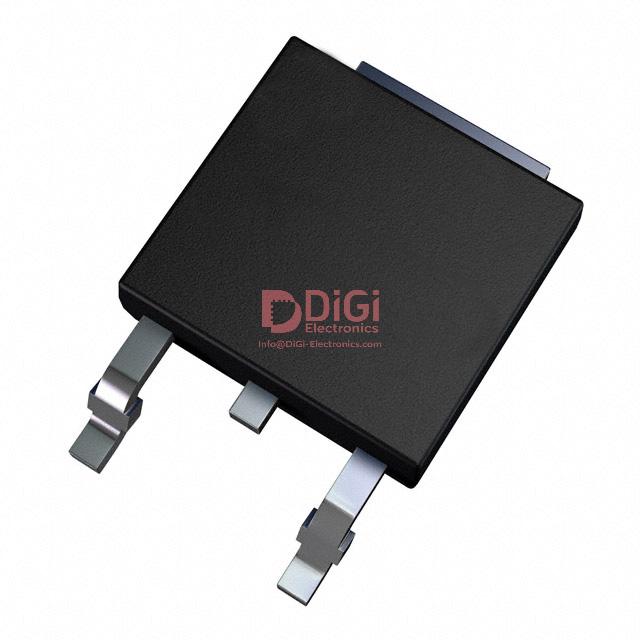

STGD20N40LZ The STMicroelectronics STGD20N40LZ is an IGBT with a 390V breakdown voltage and 25A continuous collector current. It features a 125W maximum power dissipation and comes in a DPAK surface mount package.
Mfr Part #:

STGD20N40LZ

Available from 1 distributors
Mfr Name: ST
ST
The STMicroelectronics STGD20N40LZ is an IGBT with a 390V breakdown voltage and 25A continuous collector current. It features a 125W maximum power dissipation and comes in a DPAK surface mount package.
✓ Total Stock: 52,688 pcs
$ Price Range: $2.27

STGD20N40LZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
52,688 pcs
On Request
52688 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STGD20N40LZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Gate Charge
Mounting Type
Operating Temperature
Power Dissipation (Max)
View Similar Products (0)

STGD20N40LZ Description

Short technical summary and product information.

The STMicroelectronics STGD20N40LZ is a high-performance IGBT designed for power switching applications. It offers a collector-emitter breakdown voltage of 390V and a continuous collector current rating of 25A, with a pulsed current capability of 40A.



This IGBT has a maximum power dissipation of 125W and a low on-state voltage (Vce(on)) of 1.6V at 4V gate-emitter voltage and 6A collector current. The gate charge is 24 nC, with typical turn-on delay of 700ns and turn-off delay of 4.3µs at 25°C.



Packaged in a DPAK surface mount case, the STGD20N40LZ is suitable for various power electronics designs. It operates within a temperature range of -55°C to 175°C.

STGD20N40LZ Quick Information

Product Type: IGBT
Canonical Name: STMicroelectronics STGD20N40LZ IGBT
Subcategory: Single IGBTs

STGD20N40LZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STGD20N40LZ Estimated Pricing

Qty Low High
1+ $2.27 $2.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

STGD20N40LZ Features

  • 390V collector-emitter breakdown voltage
  • 25A continuous collector current
  • 125W maximum power dissipation
  • DPAK surface mount package
  • Wide operating temperature range

STGD20N40LZ Applications

  • Used in high-voltage power switching circuits
  • Suitable for motor control applications
  • Ideal for power supply regulation
  • Employed in industrial automation

STGD20N40LZ FAQs

5 frequently asked questions generated from this part’s specifications.
What is the collector-emitter breakdown voltage of the STGD20N40LZ?

The collector-emitter breakdown voltage is 390V.

What is the maximum continuous collector current for the STGD20N40LZ?

The maximum continuous collector current is 25A.

What is the maximum power dissipation of the STGD20N40LZ?

The maximum power dissipation is 125W.

What is the operating temperature range for the STGD20N40LZ?

The operating temperature range is -55°C to 175°C.

What package type is the STGD20N40LZ available in?

The STGD20N40LZ is available in a DPAK surface mount package.
