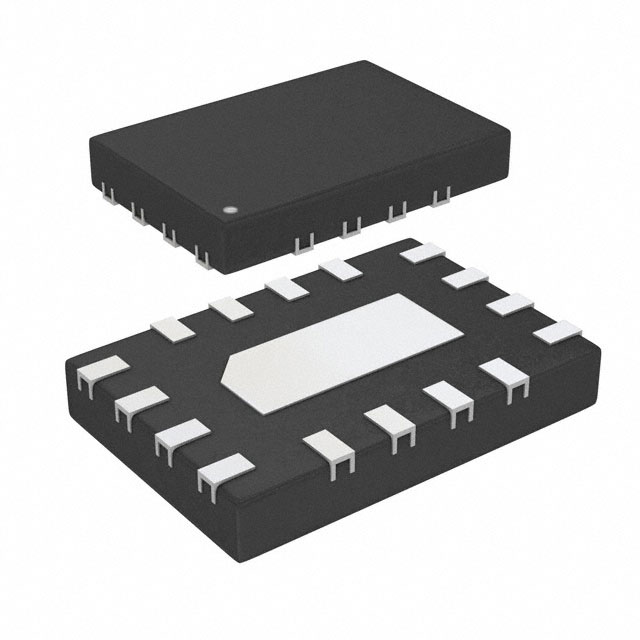

STG3692QTR The STG3692QTR is an analog switch with a 2:1 multiplexer configuration, four circuits, and a 16-QFN package. It features low on resistance and operates over a wide temperature range.
Mfr Part #:

STG3692QTR

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STG3692QTR is an analog switch with a 2:1 multiplexer configuration, four circuits, and a 16-QFN package. It features low on resistance and operates over a wide temperature range.
✓ Total Stock: 59,880 pcs
$ Price Range: $0.30

STG3692QTR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
50,880 pcs
On Request
50880 pcs On Request 1 On Request On Request 16+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STG3692QTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Channel
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Lead Spacing
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Supplier Device Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Voltage
View Similar Products (0)

STG3692QTR Description

Short technical summary and product information.

The STG3692QTR is an integrated circuit from STMicroelectronics designed as an analog switch with a 2:1 multiplexer configuration. It contains four circuits and is housed in a 16-UFQFN exposed pad package suitable for surface mounting. The device operates within a temperature range of -55°C to 125°C and supports an operating voltage between 1.65V and 4.3V. It features a channel resistance of 5.2 Ohms, a crosstalk of -78dB at 1MHz, and a bandwidth of 800MHz. The switch time is specified as a maximum of 15ns for Ton and 13ns for Toff, with a charge injection of 5pC and channel capacitance of 5pF. It is used in applications requiring high-speed switching, low crosstalk, and multiple circuit configurations in compact packages.

STG3692QTR Quick Information

Product Type: Analog Switch
Canonical Name: STG3692QTR

STG3692QTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STG3692QTR Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

STG3692QTR Features

  • Supports 2:1 multiplexer configuration
  • Contains four circuits for signal routing
  • Operates over -55°C to 125°C temperature range
  • Supports voltage from 1.65V to 4.3V
  • Package: 16-UFQFN exposed pad

STG3692QTR Applications

  • Used in high-speed switching circuits
  • Suitable for signal multiplexing applications
  • Ideal for compact electronic devices
  • Supports multiple circuit configurations

STG3692QTR FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the STG3692QTR?

-55°C to 125°C.

What package type does the STG3692QTR use?

16-UFQFN Exposed Pad.

What is the operating voltage range for the STG3692QTR?

1.65V to 4.3V.
