Mfr Part #:

STG3684ADTR

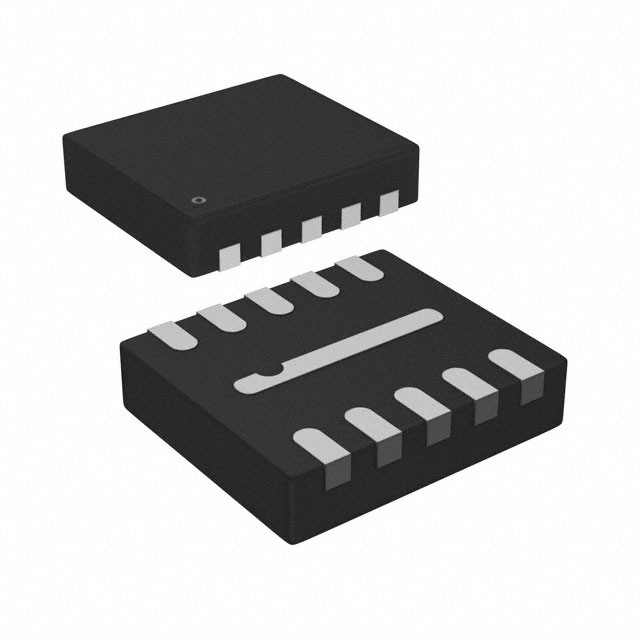

Name: STG3684ADTR
Brand: STMicroelectronics
SKU: STG3684ADTR

Mfr Name: STMicroelectronics

Description:

IC SWITCH SPDT X 2 500MOHM 10DFN

Stock on Request

STG3684ADTR Description

Short technical summary and product information.

IC SWITCH SPDT X 2 500MOHM 10DFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Analog Switches, Multiplexers, Demultiplexers
Manufacturer Name	STMicroelectronics
	55MHz
Channel	100mOhm
Channel Capacitance (CS(off), CD(off))	5pF
Charge Injection	49pC
Crosstalk	-72dB @ 100kHz
Current	20nA
Mounting Type	Surface Mount
Multiplexer	2:1
Number of Circuits	2
On	500mOhm
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	10-DFN (2.3x2)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max)	55ns, 30ns
Voltage	1.65V ~ 4.3V
