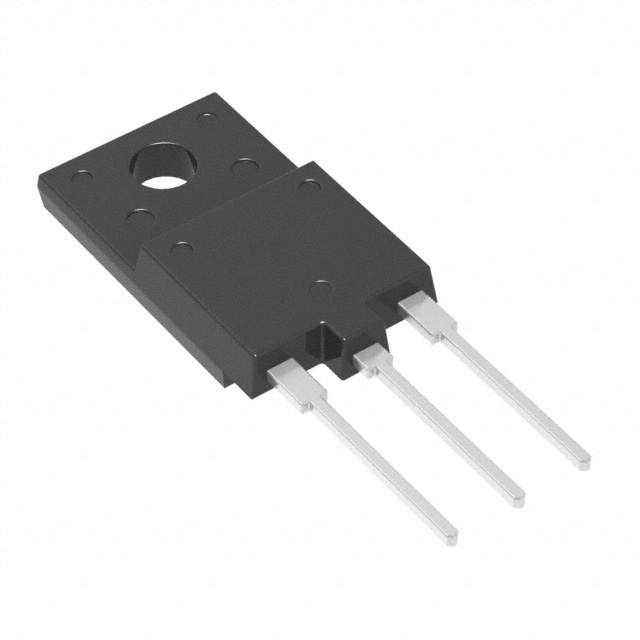

STFW8N120K5 The STMicroelectronics STFW8N120K5 is an N-Channel MOSFET with a 1200V drain-source voltage and a 6A continuous current rating. It is designed for through-hole mounting in a TO-3PF package.
Mfr Part #:

STFW8N120K5

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STFW8N120K5 is an N-Channel MOSFET with a 1200V drain-source voltage and a 6A continuous current rating. It is designed for through-hole mounting in a TO-3PF package.
✓ Total Stock: 1,710 pcs
$ Price Range: $2.56

STFW8N120K5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,710 pcs
On Request
1710 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STFW8N120K5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

STFW8N120K5 Description

Short technical summary and product information.

This STMicroelectronics STFW8N120K5 is an N-Channel MOSFET designed for power applications. It features a high drain-source voltage (Vdss) of 1200V and a continuous current rating of 6A at the case temperature.



The MOSFET has a maximum on-resistance (Rds On) of 2 Ohms at 2.5A and 10V gate-source voltage. The gate charge (Qg) is 13.7 nC maximum at 10V, and the input capacitance (Ciss) is 505 pF maximum at 100V.



With an operating temperature range of -55°C to 150°C (TJ), this component is suitable for various thermal environments. The gate threshold voltage (Vgs(th)) is 5V maximum at 100µA, and the maximum gate-source voltage (Vgs) is ±30V.



The STFW8N120K5 is packaged in a TO-3PF case and utilizes through-hole mounting. Its technology is MOSFET (Metal Oxide).

STFW8N120K5 Quick Information

Product Type: MOSFET
Canonical Name: STMicroelectronics STFW8N120K5 N-Channel MOSFET
Subcategory: N-Channel

STFW8N120K5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STFW8N120K5 Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

STFW8N120K5 Features

  • 1200V drain-source voltage rating.
  • 6A continuous current capability.
  • 2 Ohm maximum on-resistance.
  • TO-3PF package for through-hole mounting.
  • Wide operating temperature range.

STFW8N120K5 Applications

  • High-voltage power supply switching circuits.
  • Power factor correction (PFC) stages.
  • Switching mode power supplies (SMPS).
  • Motor control and inverter applications.

STFW8N120K5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the STFW8N120K5?

The maximum drain-source voltage (Vdss) is 1200V.

What is the continuous drain current rating?

The maximum continuous drain current is 6A at case temperature (Tc).

What is the on-resistance of this MOSFET?

The maximum on-resistance (Rds(on)) is 2 Ohms at a gate-source voltage of 10V and drain current of 2.5A.

What package does the STFW8N120K5 come in?

It comes in a TO-3P-3 Full Pack package (supplier device package TO-3PF) with through-hole mounting.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.

What is the gate threshold voltage?

The maximum gate threshold voltage (Vgs(th)) is 5V at a drain current of 100µA.

What is the input capacitance?

The maximum input capacitance (Ciss) is 505pF at a drain-source voltage of 100V.
