| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 652 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

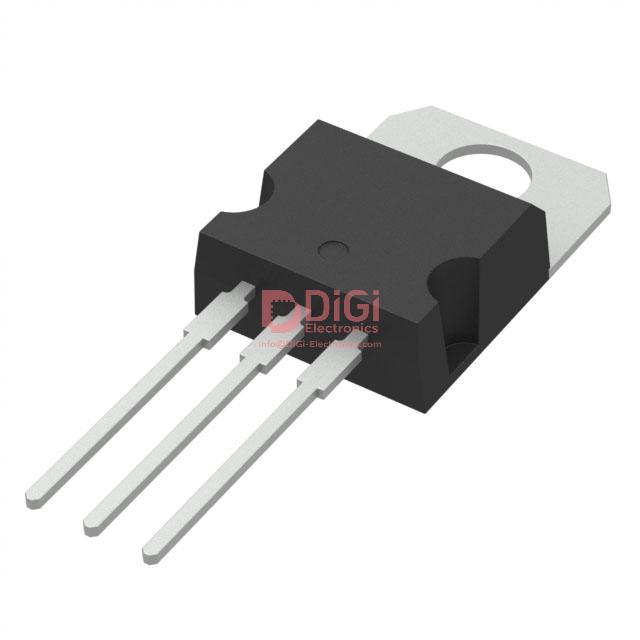

The STF4NK50ZD is an N-Channel power MOSFET manufactured by STMicroelectronics. It features a drain-source voltage rating of 500V and a continuous drain current of 3A at case temperature. The device offers a maximum on-resistance of 2.7 Ohms at 1.5A and 10V gate drive, ensuring efficient conduction for moderate power levels. With a gate charge of 12 nC and input capacitance of 310 pF, it is suitable for switching applications requiring moderate speed.
The MOSFET is housed in a TO-220-3 Full Pack (TO-220FP) through-hole package, providing good thermal performance with a maximum power dissipation of 20W. It operates over a junction temperature range of -55°C to 150°C. This device is designed for general-purpose power switching in circuits such as power supplies and motor controls.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 500V.
The STF4NK50ZD is available in a TO-220-3 Full Pack (TO-220FP) through-hole package.
It operates over a junction temperature range of -55°C to 150°C.
The continuous drain current is 3A at case temperature.
The maximum gate threshold voltage is 4.5V at a drain current of 50µA.
