| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,070 pcs
|
3070 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,357 pcs
|
1357 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
390 pcs
|
390 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Failure Rate | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The STMicroelectronics STF33N60M2 is a high-performance N-Channel MOSFET designed for various power applications. It features a maximum drain-to-source voltage (Vdss) of 600V and a continuous drain current (Id) of 26A at 25°C.
Key electrical characteristics include a maximum on-resistance (Rds On) of 125mOhm at 13A and 10V gate drive voltage, a gate threshold voltage (Vgs(th)) of 4V at 250µA, and a maximum gate charge (Qg) of 45.5 nC at 10V. The input capacitance (Ciss) is rated at 1781 pF at 100V, and the maximum gate-source voltage (Vgs) is ±25V.
This MOSFET operates within a temperature range of -55°C to 150°C (TJ) and has a maximum power dissipation of 35W (Tc). It utilizes MOSFET (Metal Oxide) technology and is part of the MDmesh™ II Plus series.

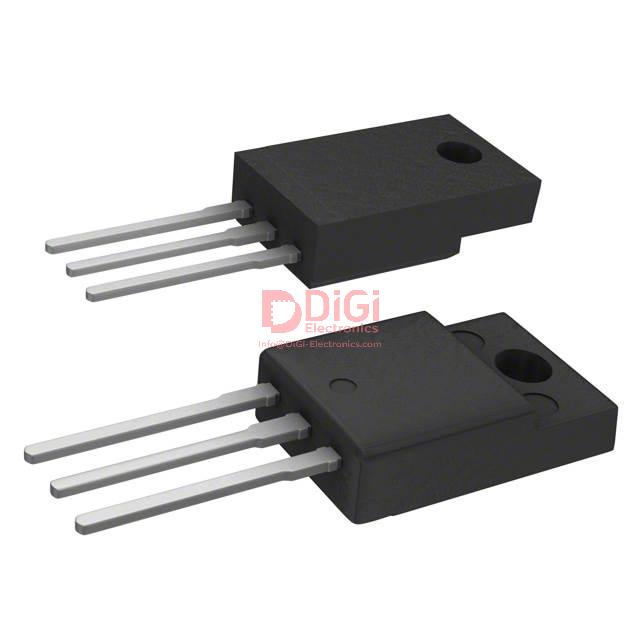

The component is housed in a TO-220-3 Full Pack package and is designed for through-hole mounting. Its RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1 Unlimited, and REACH status is Unaffected. Please note that compliance data is unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 600 V.
The continuous drain current (Id) at 25°C is 26A.
The maximum on-resistance (Rds On) is 125mOhm at 13A and 10V.
The maximum gate threshold voltage (Vgs(th)) is 4V at 250µA.
The operating temperature range is -55°C to 150°C (TJ).
This MOSFET is in a TO-220-3 Full Pack package, also referred to as TO-220FP.
This component is designed for through-hole mounting.
