| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
427 pcs
|
427 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The STMicroelectronics STF20N20 is an N-Channel MOSFET belonging to the STripFET II series, realized with STMicroelectronics' unique STripFET process. This process is specifically designed to minimize input capacitance and gate charge, making it suitable as a primary switch in advanced high-efficiency isolated DC-DC converters.
Key electrical specifications include a maximum drain-to-source voltage (Vdss) of 200V and a continuous drain current (Id) of 18A at 25°C. The on-resistance (Rds On) is a maximum of 125mOhm at 10A and 10V, with a typical value of 0.10 Ohm. The gate charge (Qg) is a maximum of 39 nC at 10V, and the input capacitance (Ciss) is a maximum of 940 pF at 25V. The maximum gate-source voltage (Vgs) is ±20V, and the gate threshold voltage (Vgs(th)) is 4V at 250µA.
This MOSFET is designed for high current switching applications and high efficiency DC-DC converters, functioning as a primary side switch. It has a maximum power dissipation of 25W (Tc) and operates within a temperature range of -55°C to 150°C (TJ).

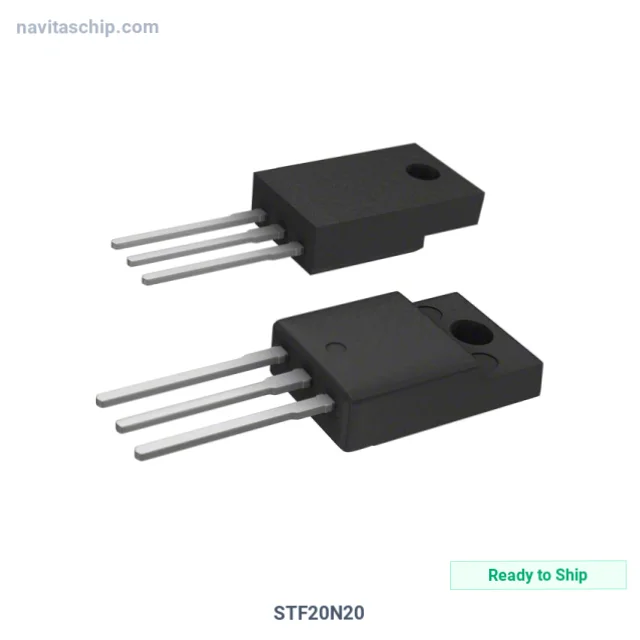

The STF20N20 is supplied in a TO-220FP package, which is a through-hole mounting type. The product is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) for the STF20N20 is 200V.
The continuous drain current (Id) for the STF20N20 at 25°C is 18A.
The maximum on-resistance (Rds On) for the STF20N20 is 125mOhm at 10A and 10V.
The typical on-resistance (Rds On) for the STF20N20 is 0.10 Ohm.
The maximum gate charge (Qg) for the STF20N20 is 39 nC at 10V.
The operating temperature range (TJ) for the STF20N20 is -55°C to 150°C.
The STF20N20 is supplied in a TO-220FP package.
