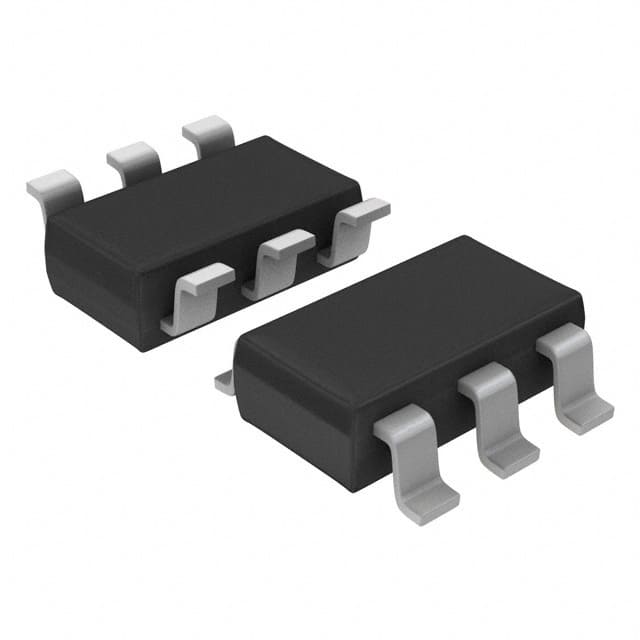

The STF202-22T1G from On Semiconductor is an integrated USB filter solution providing line termination, EMI filtering, and ESD protection. This device is designed for upstream USB ports, cellular phones, wireless equipment, and computer applications. It offers a cost-effective alternative to discrete components by replacing multiple resistors, capacitors, and TVS diodes with a single IC.
The filter provides bi-directional EMI filtering to prevent noise from entering or leaving the system and offers IEC61000-4-2 ESD protection for USB ports. It supports flexible pull-down or pull-up line termination to meet USB 1.1 low and high-speed specifications. The device has ESD ratings of Machine Model C and Human Body Model 3B.
Key electrical specifications include a series resistance of 20 Ohms and a line capacitance of 68pF. The filter operates within a temperature range of -55°C to 125°C. It is housed in a space-saving TSOP-6 surface mount package (SC-74, SOT-457), measuring 3.00mm in length and 1.50mm in width.
This Pb-Free device is suitable for applications such as USB hubs and computer peripherals utilizing USB interfaces. Its integrated design increases system reliability compared to discrete component implementations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The STF202-22T1G is housed in a TSOP-6 surface mount package.
The operating temperature range is -55°C to +125°C.
The STF202-22T1G is a 2nd order filter.
The filter has 2 channels.
The series resistance is 22 Ohm and the capacitance is 68pF.
ESD protection ratings are Human Body Model 3B and Machine Model C.
