| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Type | |
| Current | |
| Main Purpose | |
| Output Current (Nominal @ Output 2) | |
| Output Type | |
| Outputs and Type | |
| Power | |
| Regulator Topology | |
| Supplied Contents | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

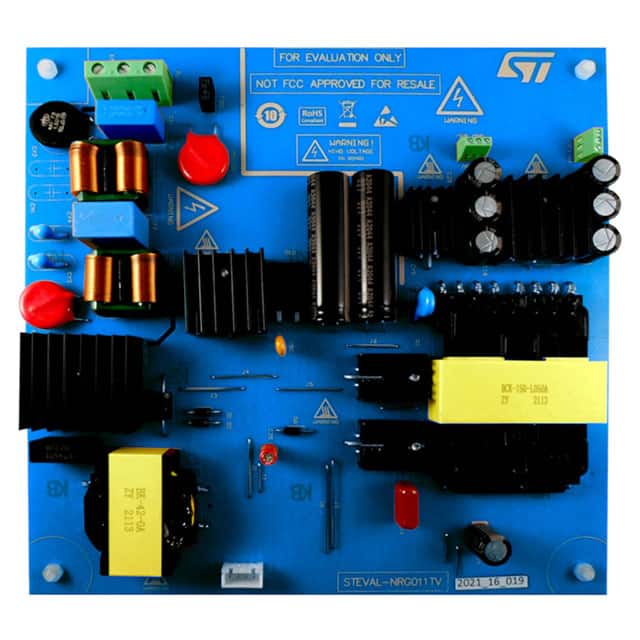

The STEVAL-NRG011TV is a fully populated evaluation board from STMicroelectronics designed to demonstrate the STNRG011 AC/DC controller with power factor correction. It operates from a universal input voltage range of 90 to 264 VAC and delivers a total output power of 200 W.
The board provides two non-isolated outputs: 2.3 A and 4 A, using a resonant regulator topology. It is intended for primary and secondary side applications, making it suitable for evaluating the STNRG011 in real-world power supply designs.
The kit includes the populated board only. The board is fully assembled and ready for testing, allowing engineers to quickly assess the performance of the STNRG011 controller in a 200 W AC/DC converter.
| Qty | Low | High |
|---|---|---|
| 1+ | $196.71 | $196.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 90 to 264 VAC.
The output power is 200 W.
It has two non-isolated outputs: 2.3 A and 4 A.
The board utilizes the STNRG011 IC.
The regulator topology is resonant.
Yes, the board type is fully populated.
