| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
69 pcs
|
69 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Embedded | |
| Interface | |
| Sensor Type | |
| Supplied Contents | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

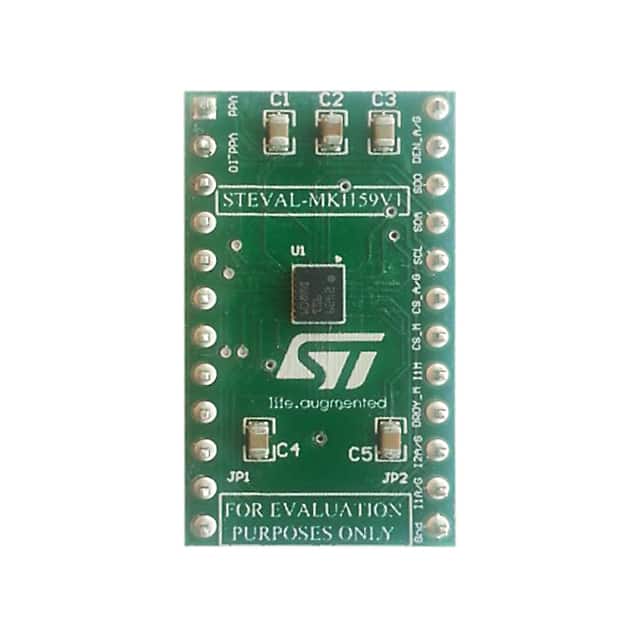

The STEVAL-MKI159V1 is an evaluation adapter board designed by STMicroelectronics to demonstrate the capabilities of the LSM9DS1 system-in-package. The LSM9DS1 integrates a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer into a single device, providing 9 degrees of freedom (DoF) motion sensing.
This adapter board interfaces with a host microcontroller through either I²C or SPI communication protocols, offering flexibility for various system designs. It operates over a supply voltage range of 1.9V to 3.6V, making it suitable for low-power applications. The board is supplied as a bare board assembly, allowing engineers to quickly prototype and evaluate the LSM9DS1 sensor in their own designs.
Typical applications include motion detection, orientation tracking, and sensor fusion for robotics, drones, and wearable devices. The DIL24 form factor enables easy integration into standard prototyping boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.87 | $17.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The board utilizes the LSM9DS1 system-in-package, which integrates a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer.
The board supports both I²C and SPI interfaces.
The supply voltage range is 1.9V to 3.6V.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
