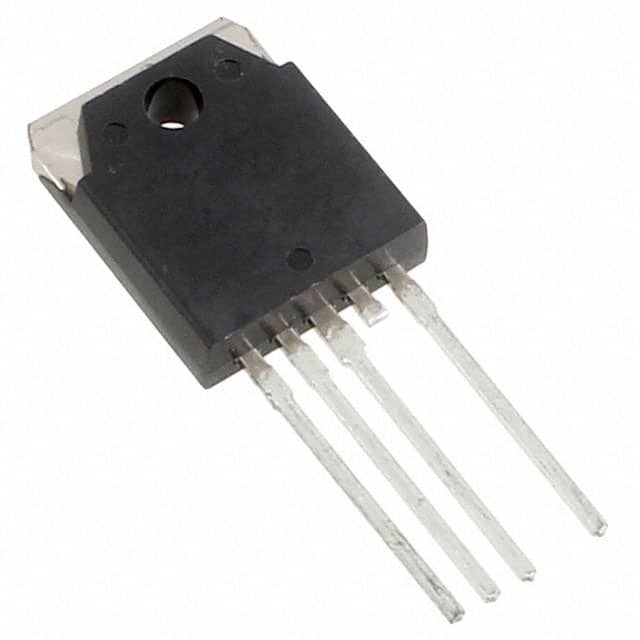

The Sanken STD03N is a silicon NPN epitaxial planar transistor with built-in temperature compensation, specifically suited for audio amplifier output stages. It offers a high collector-emitter voltage (Vceo) of 160V and a maximum collector current (Ic) of 15A, with a power dissipation (Pd) of 160W. The transistor exhibits a high DC current gain (hFE) ranging from 5000 to 20000 at 10A and 4V, and a maximum saturation voltage (Vce(sat)) of 2V at 10mA and 10A.
This component is housed in a TO-3P-5L package and is designed for through-hole mounting. Its complementary product is the STD03P. The STD03N is suitable for applications requiring robust amplification and thermal management, such as in audio equipment.
Key electrical characteristics include a Vceo of 160V and a continuous collector current of 15A. The device operates at temperatures up to 150°C (TJ). Its Darlington configuration provides high current gain, making it effective in power amplification circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
160 V maximum.
15 A maximum.
5000 to 20000 at 10A, 4V.
TO-3P-5 (supplier package TO-3P-5L), through-hole mounting.
160 W maximum.
150°C.
2 V maximum at Ib=10mA, Ic=10A.
