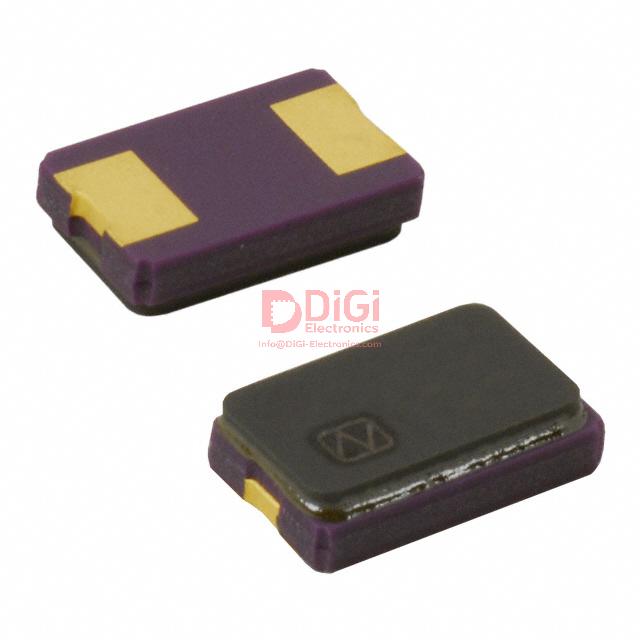

STD-CSU-1-8M The NDK America, Inc. STDCSU1-8M is an 8MHz crystal with a load capacitance of 8pF and a frequency tolerance of ±50ppm. It is designed for surface mounting.
Mfr Part #:

STD-CSU-1-8M

Available from 1 distributors
Mfr Name: NDK America, Inc.
NDK America, Inc.
The NDK America, Inc. STDCSU1-8M is an 8MHz crystal with a load capacitance of 8pF and a frequency tolerance of ±50ppm. It is designed for surface mounting.
✓ Total Stock: 128 pcs
$ Price Range: $0.56

STD-CSU-1-8M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
128 pcs
On Request
128 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STD-CSU-1-8M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Ratings
Tape & Reel
View Similar Products (0)

STD-CSU-1-8M Description

Short technical summary and product information.

This NDK America, Inc. crystal, part number STDCSU1-8M, operates at a nominal frequency of 8 MHz. It features a load capacitance of 8pF and a frequency tolerance of ±50ppm, with a frequency stability of ±150ppm. The crystal is rated for an operating temperature range of -40°C to 150°C and meets the AEC-Q200 standard.



Designed for surface mounting, the STDCSU1-8M comes in a 2-SMD, No Lead package. Its dimensions are 5.00mm x 3.20mm with a maximum seated height of 1.50mm. The ESR is specified at 300 Ohms, and it operates in fundamental mode.



This component is suitable for applications requiring precise frequency control within a wide temperature range. Its surface mount package facilitates integration into compact electronic designs.

STD-CSU-1-8M Quick Information

Product Type: Crystal
Series: NX5032GA
Canonical Name: NDK America, Inc. STDCSU1-8M Crystal 8MHz 8pF ±50ppm
Subcategory: Crystals

STD-CSU-1-8M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STD-CSU-1-8M Estimated Pricing

Qty Low High
1+ $0.56 $0.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

STD-CSU-1-8M Features

  • 8 MHz nominal frequency crystal.
  • ±50ppm frequency tolerance.
  • 8pF load capacitance.
  • Surface mount 2-SMD, No Lead package.
  • AEC-Q200 qualified for reliability.

STD-CSU-1-8M Applications

  • Ideal for clock generation circuits.
  • Suitable for frequency reference applications.
  • Used in embedded system timing.
  • Applicable in automotive electronics.

STD-CSU-1-8M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of this crystal?

8 MHz.

What is the frequency tolerance?

±50ppm.

What is the load capacitance?

8pF.

What is the operating temperature range?

-40°C to 150°C.

What is the package type?

2-SMD, No Lead (Surface Mount).

Is this crystal AEC-Q200 rated?

Yes, it is AEC-Q200 qualified.
