STBC15LJTR The STMicroelectronics STBC15LJTR is a single-cell Lithium Ion battery charger IC. It features a 40mA charge current and a 6.5V operating voltage.
Mfr Part #:

STBC15LJTR

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STBC15LJTR is a single-cell Lithium Ion battery charger IC. It features a 40mA charge current and a 6.5V operating voltage.
✓ Total Stock: 10,000 pcs
$ Price Range: $1.29

STBC15LJTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STBC15LJTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Battery Chemistry
Battery Pack Voltage
Charge Current
Current
Fault Protection
Interface
Mounting Type
Number of Cells
Operating Temperature
Programmable Features
SVHC Present
Supplier Device Package
Voltage
View Similar Products (0)

STBC15LJTR Description

Short technical summary and product information.

The STMicroelectronics STBC15LJTR is a battery charger integrated circuit designed for single-cell Lithium Ion batteries. This device operates at 6.5V and supports a charge current of 40mA. It features a USB interface for charging control and includes programmable features for current and voltage regulation.

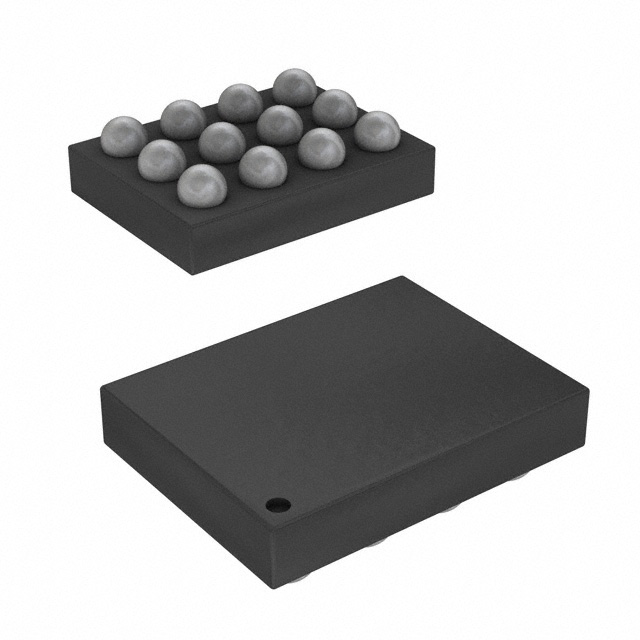

The STBC15LJTR is designed for surface mount applications, utilizing a 12-Flip-Chip (1.11x1.41) package, specifically a 12-XFBGA, FCBGA. It operates within a temperature range of -40°C to 85°C (TA). The charger includes fault protection for reverse current, making it suitable for various portable electronic devices.



This IC is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited, indicating it is not sensitive to moisture under standard conditions. The REACH status is unaffected.

STBC15LJTR Quick Information

Product Type: Battery Charger IC
Canonical Name: STMicroelectronics STBC15LJTR Battery Charger
Subcategory: Power Management ICs

STBC15LJTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STBC15LJTR Estimated Pricing

Qty Low High
1+ $1.29 $1.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

STBC15LJTR Features

  • Single-cell Lithium Ion battery charger.
  • 40mA charge current capability.
  • 6.5V operating voltage.
  • USB interface for charging.
  • Surface mount 12-Flip-Chip package.

STBC15LJTR Applications

  • Charges single-cell Li-Ion batteries.
  • Ideal for portable medical devices.
  • Suitable for wearable electronics.
  • Used in USB-powered chargers.

STBC15LJTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the STBC15LJTR?

6.5V.

What is the operating temperature range?

-40°C to 85°C.

What package does the STBC15LJTR come in?

12-XFBGA, FCBGA (12-Flip-Chip, 1.11x1.41mm).

What battery chemistry does it support?

Lithium Ion.

How many cells can it charge?

1 cell.

What is the charge current?

40mA, programmable.

What interface does it use?

USB.
