STBB3JCCR The STMicroelectronics STBB3JCCR is a DC-DC switching regulator featuring a Buck-Boost topology. It provides an adjustable positive output and supports a current of 2A.
Mfr Part #:

STBB3JCCR

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STBB3JCCR is a DC-DC switching regulator featuring a Buck-Boost topology. It provides an adjustable positive output and supports a current of 2A.
✓ Total Stock: 10,000 pcs
$ Price Range: $1.08

STBB3JCCR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STBB3JCCR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

STBB3JCCR Description

Short technical summary and product information.

The STMicroelectronics STBB3JCCR is a versatile DC-DC switching regulator designed for efficient power management. This component operates with a 1.8V input voltage and can deliver up to 2A of current.



Featuring a Buck-Boost topology, the STBB3JCCR can step voltage both up and down, making it suitable for a wide range of applications. The output is adjustable and configured as positive. It operates at a switching frequency of 2MHz, contributing to its compact design and efficiency.

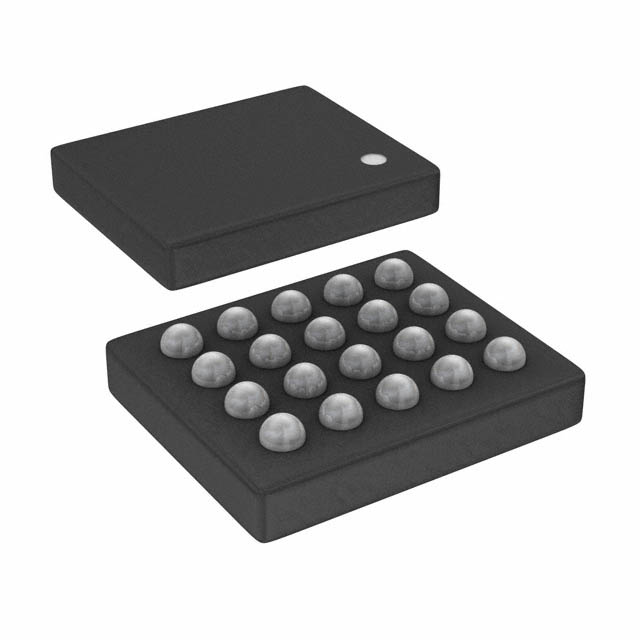

This regulator is designed for surface mount installation, utilizing a 20-Flip-Chip (2.52x1.76) package, also known as 20-UFBGA, FCBGA. The operating temperature range is -40°C to 85°C (TA), ensuring reliable performance in various environmental conditions. It includes a synchronous rectifier for improved efficiency.



Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH Unaffected status, though these are noted as low confidence due to verification status.

STBB3JCCR Quick Information

Product Type: DC-DC Switching Regulator
Canonical Name: STMicroelectronics STBB3JCCR DC-DC Switching Regulator
Subcategory: Voltage Regulators

STBB3JCCR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STBB3JCCR Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

STBB3JCCR Features

  • Buck-Boost topology for voltage step-up/down.
  • Adjustable positive output voltage.
  • 2A maximum output current.
  • 2MHz switching frequency.
  • Surface mount 20-Flip-Chip package.

STBB3JCCR Applications

  • Powering portable electronic devices.
  • Battery-powered system voltage regulation.
  • Applications requiring flexible voltage conversion.
  • Compact power supply designs.

STBB3JCCR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the STBB3JCCR?

1.8V.

What is the operating temperature range?

-40°C to 85°C.

What package is the STBB3JCCR available in?

20-UFBGA, FCBGA (20-Flip-Chip 2.52x1.76mm).

What is the output current capability?

2A.

What is the switching frequency?

2MHz.

What topology does the STBB3JCCR use?

Buck-Boost with synchronous rectifier.

Is the output adjustable?

Yes, the output type is adjustable.
