STB45NF06T4 The STB45NF06T4 is an N-channel MOSFET from STMicroelectronics. It offers a 60V drain-source voltage and a continuous drain current of 38A.
Mfr Part #:

STB45NF06T4

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STB45NF06T4 is an N-channel MOSFET from STMicroelectronics. It offers a 60V drain-source voltage and a continuous drain current of 38A.
✓ Total Stock: 2,197 pcs
$ Price Range: $2.56

STB45NF06T4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
197 pcs
On Request
197 pcs On Request 1 On Request On Request 941 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STB45NF06T4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

STB45NF06T4 Description

Short technical summary and product information.

The STB45NF06T4 is a single N-channel MOSFET designed for surface mount applications. It features a maximum drain-source voltage (Vdss) of 60V and a continuous drain current (Id) of 38A at a case temperature.



This MOSFET has a low on-resistance (Rds On) of 28mOhm at 19A and 10V gate-source voltage. The gate threshold voltage (Vgs(th)) is 4V at 250µA. It also has a maximum gate-to-source voltage of ±20V and a gate charge (Qg) of 58nC at 10V.

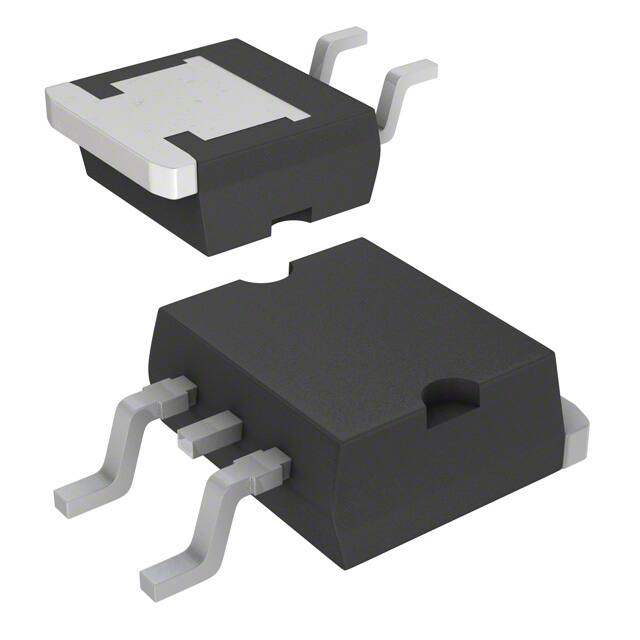

Packaged in a TO-263-4, D²Pak format, the STB45NF06T4 is suitable for various power management applications. It operates at a maximum junction temperature of 175°C and can dissipate up to 80W (Tc).



Compliance includes RoHS3, MSL 1, and REACH Unaffected. The mounting type is surface mount.

STB45NF06T4 Quick Information

Product Type: MOSFET
Canonical Name: STB45NF06T4 N-Channel MOSFET
Subcategory: N-Channel

STB45NF06T4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STB45NF06T4 Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

STB45NF06T4 Features

  • 60V drain-source voltage rating.
  • 38A continuous drain current capability.
  • Low 28mOhm Rds On at 19A, 10V.
  • Surface mount D2PAK package.
  • 175°C maximum junction temperature.

STB45NF06T4 Applications

  • Suitable for power switching circuits.
  • Used in DC-DC converters.
  • Applicable for motor control.
  • Ideal for power management ICs.

STB45NF06T4 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the STB45NF06T4?

The maximum drain-source voltage (Vdss) for the STB45NF06T4 is 60V.

What is the continuous drain current of the STB45NF06T4?

The STB45NF06T4 has a continuous drain current (Id) of 38A.

What is the Rds On for the STB45NF06T4?

The Rds On is a maximum of 28mOhm at 19A drain current and 10V gate-source voltage.

What is the operating temperature range for this MOSFET?

The operating temperature range (TJ) for the STB45NF06T4 is up to 175°C.

What package type is the STB45NF06T4 supplied in?

The STB45NF06T4 is supplied in a TO-263-4, D²Pak (3 Leads + Tab), TO-263AA package.

How is the STB45NF06T4 mounted?

The STB45NF06T4 is a surface mount device.
