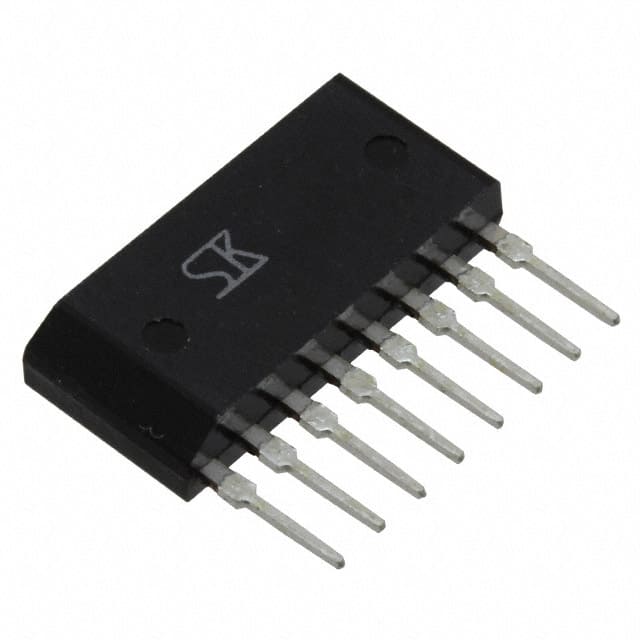

The Sanken STA301A is a 3-element NPN Darlington transistor array housed in an 8-SIP package for through-hole mounting. This component is designed for applications requiring high current gain, offering a minimum hFE of 1000 at 3A and 4V.
Key electrical specifications include a collector-emitter voltage (VCEO) of 60V and a maximum collector current (IC) of 4A. The Vce saturation is rated at a maximum of 2V when driven by 10mA base current at 3A collector current. It also features built-in avalanche diodes between collector and base for protection.
This transistor array is suitable for driving loads such as relays, solenoids, and lamps. Its robust design and specifications make it a reliable choice for various industrial and electronic control applications. The operating temperature range is up to 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The STA301A is a 3 NPN Darlington (Emitter Coupled) transistor array.
The maximum collector-emitter voltage (VCEO) is 60 V.
The maximum collector current (IC) is 4 A.
Yes, it includes a clamp diode.
The minimum DC current gain (hFE) is 1000 at Vce = 4V and Ic = 3A.
The maximum Vce saturation voltage is 2 V at Ib = 10mA and Ic = 3A.
The package is 8-SIP with through-hole mounting.
