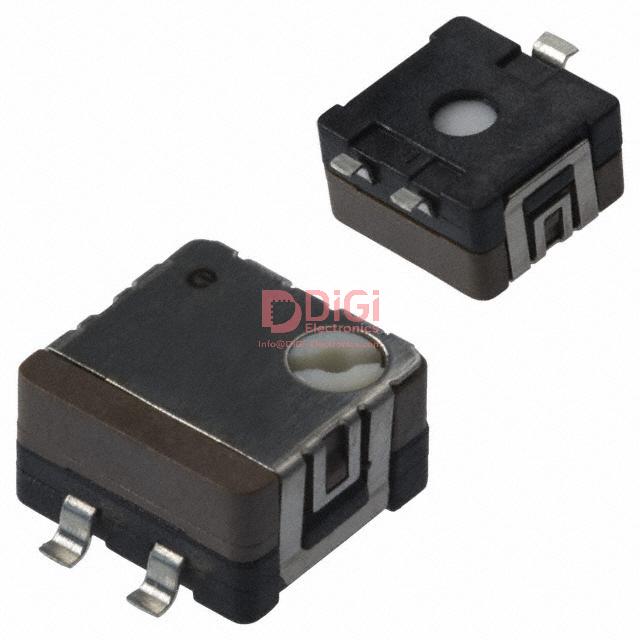

ST7ETB104 The Copal Electronics ST7ETB104 is a trimmer potentiometer with 100 kOhms resistance and a 0.25W power rating. It features a Cermet resistive material and a surface mount gull wing termination style.
Mfr Part #:

ST7ETB104

Available from 1 distributors
Mfr Name: Copal Electronics
Copal Electronics
The Copal Electronics ST7ETB104 is a trimmer potentiometer with 100 kOhms resistance and a 0.25W power rating. It features a Cermet resistive material and a surface mount gull wing termination style.
✓ Total Stock: 472 pcs
$ Price Range: $0.05

ST7ETB104 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
472 pcs
On Request
472 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ST7ETB104 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Duration
Mounting Type
Number of Turns
Power Rating
Resistance
SVHC Present
Temperature Coefficient
Termination Style
Tolerance
View Similar Products (0)

ST7ETB104 Description

Short technical summary and product information.

The Copal Electronics ST7ETB104 is a high-quality trimmer potentiometer designed for precise resistance adjustments. It offers a resistance value of 100 kOhms with a power rating of 0.25W (1/4W) and a tolerance of ±20%. The component utilizes a Cermet resistive material, ensuring stability and reliability.



This trimmer potentiometer is designed for surface mounting and features a gull wing termination style, facilitating easy integration into printed circuit boards. It has 3 turns for fine adjustment and a top adjustment type. The dimensions are rectangular, measuring 0.252" x 0.240" face (6.40mm x 6.10mm).



The ST7ETB104 series is suitable for various electronic applications requiring variable resistance control. Its robust construction and precise specifications make it a reliable choice for circuit calibration and tuning.

ST7ETB104 Quick Information

Product Type: Trimmer Potentiometer
Series: ST7
Canonical Name: Copal Electronics ST7ETB104 Trimmer Potentiometer, 100 kOhms, 0.25W
Subcategory: Trimmer Potentiometer

ST7ETB104 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ST7ETB104 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

ST7ETB104 Features

  • 100 kOhms resistance value.
  • 0.25W power rating.
  • ±20% tolerance.
  • Cermet resistive material.
  • Surface mount with gull wing termination.

ST7ETB104 Applications

  • Ideal for circuit calibration.
  • Suitable for resistance tuning.
  • Used in electronic assemblies.
  • Precise adjustment applications.

ST7ETB104 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance of the ST7ETB104 trimmer potentiometer?

The ST7ETB104 has a resistance of 100 kOhms.

What is the power rating for the ST7ETB104?

The power rating for the ST7ETB104 is 0.25W, or 1/4W.

What is the tolerance of the ST7ETB104 trimmer potentiometer?

The tolerance of the ST7ETB104 is ±20%.

How many turns does the ST7ETB104 have for adjustment?

The ST7ETB104 has 3 turns for adjustment.

What type of material is used for the resistive element in the ST7ETB104?

The ST7ETB104 uses a Cermet resistive material.

What is the mounting type for the ST7ETB104?

The ST7ETB104 is a surface mount component.

What are the dimensions of the ST7ETB104?

The ST7ETB104 has a rectangular face dimension of 0.252" x 0.240" (6.40mm x 6.10mm).
