| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Voltage |

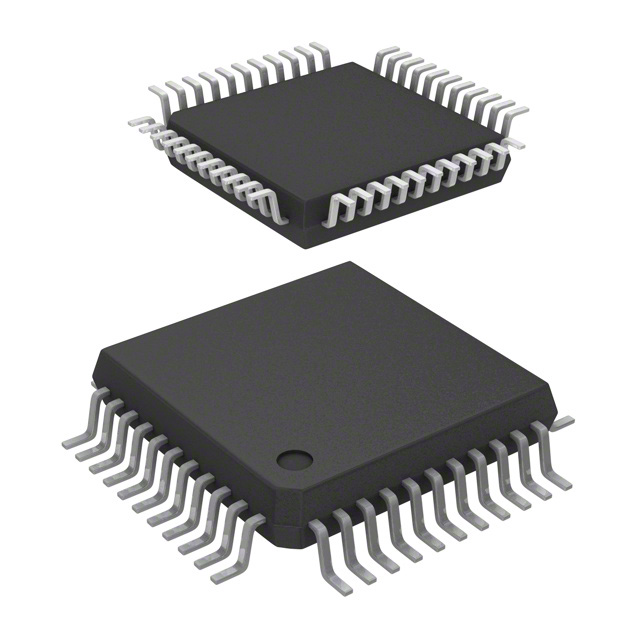

The STMicroelectronics ST72F324J4TC/TR is an 8-bit microcontroller based on the ST7 core processor. It offers 16KB of FLASH program memory and 512 bytes of RAM, suitable for various embedded applications. This device operates at a clock speed of up to 8MHz and supports an internal oscillator.
Key features include 32 I/O pins for extensive connectivity, along with integrated peripherals such as Low Voltage Detection (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT). It supports SCI and SPI communication interfaces and includes 12 channels of 10-bit Analog-to-Digital converters for data acquisition. The operating supply voltage ranges from 3.8V to 5.5V.
Designed for surface mount applications, the ST72F324J4TC/TR comes in a 44-pin LQFP package. Despite being marked as obsolete, it remains a viable option for legacy systems and specific applications requiring its feature set. Its robust performance and high integration make it suitable for industrial control, consumer electronics, automotive systems, medical devices, and smart metering applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ST72F324J4TC/TR has 16KB (16K x 8) of FLASH program memory.
This microcontroller features 512 bytes of RAM.
The operating voltage range for this component is 3.8V to 5.5V.
The operating temperature range is -40°C to 125°C (TA).
The ST72F324J4TC/TR is supplied in a 44-pin LQFP package.
This microcontroller is equipped with 32 I/O pins.
Integrated peripherals include Low Voltage Detection (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and a Watchdog Timer (WDT).
