| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,463 pcs
|
1463 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
184 pcs
|
184 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

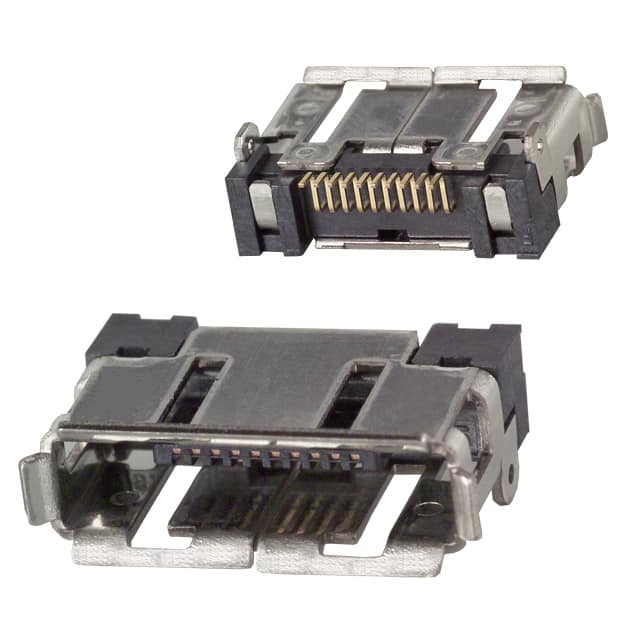

The Hirose Electric ST60-10P(30) is a 10-position receptacle connector designed for board-to-cable/wire interconnects. It features a 0.50mm pitch and a single row of non-gendered contacts with gold plating (30.0µin). The connector supports board edge, surface mount, and right angle mounting options with solder termination.
Electrical ratings include a current rating of 0.5A per contact and a voltage rating of 100VAC. The operating temperature range is -30°C to 80°C. The housing is black with an insulation height of 3.00mm and is rated UL94 V-0 for flammability.
Mechanical features include a latch holder fastening type, board guide, and shielding. All 10 positions are loaded. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
| 10+ | $1.59 | $1.59 |
| 25+ | $1.42 | $1.42 |
| 100+ | $1.36 | $1.36 |
| 250+ | $1.27 | $1.27 |
| 500+ | $1.25 | $1.25 |
| 1,000+ | $1.21 | $1.21 |
| 1,500+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ST60-10P(30) has 10 positions in a single row, all loaded.
The pitch is 0.50mm (0.020 inches).
The current rating is 0.5A per contact.
The voltage rating is 100VAC.
The connector supports board edge, surface mount, and right angle mounting.
The operating temperature range is -30°C to 80°C.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
