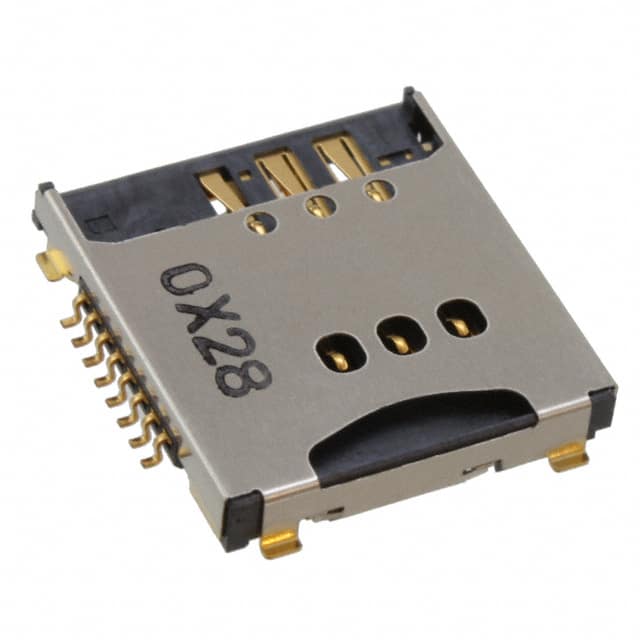

The JAE Electronics ST5S014V4AR800 is a versatile combo connector supporting both microSD and standard SIM cards. It belongs to the ST5 Series and features a push-push mechanism for easy insertion and removal.
This connector has 16 positions (14 for signal and 2 for D-SW) and is designed for surface mount (SMT) right-angle applications. The contacts are finished with gold plating to a thickness of 0.51µm, ensuring reliable conductivity. It operates within a temperature range of -25°C to +85°C and has a rated voltage of 10V per pin and a rated current of 0.5A per pin.
The connector has a low profile with a height of 2.8mm above the board. It includes a card insertion detection switch (normally open) and a mounting feature for reverse bottom placement. The housing is made of resin with a UL 94V-0 flammability rating, and the overall construction is designed for durability with a mating cycle rating of 10,000.
This component is suitable for applications requiring compact and reliable memory and SIM card connectivity, such as in mobile devices, IoT modules, and embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector supports both microSD and standard SIM cards.
It has 16 positions, consisting of 14 signal contacts and 2 for the D-SW.
The mounting type is Surface Mount (SMT) with a Right Angle orientation.
The contact finish is Gold with a thickness of 0.51µm.
The operating temperature range is from -25°C to +85°C.
The rated voltage is 10V per pin and the rated current is 0.5A per pin.
The connector is rated for 10,000 mating cycles.
