| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Features | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Termination Style | |
| Wire Type |

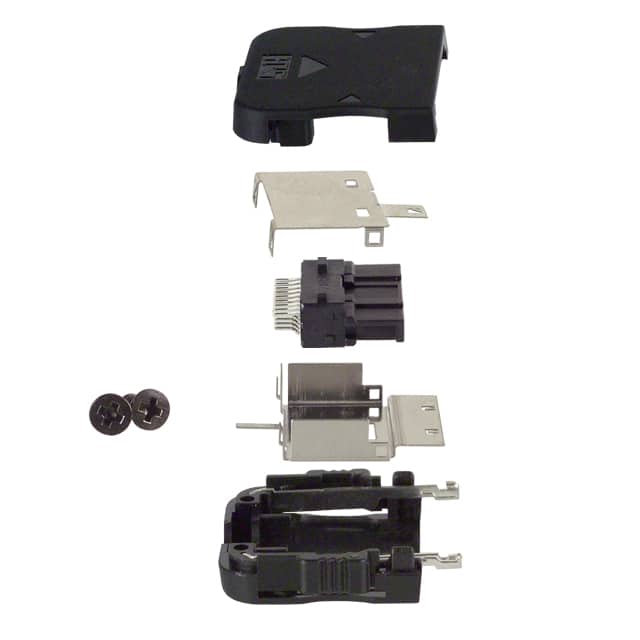

The ST40X-18S-CV is a plug connector from Hirose Electric's ST series, designed for input/output connections in portable and mobile devices. It features 18 positions in a single row with a 0.5mm pitch, offering a compact and reliable solution. The connector uses a free-hanging (in-line) mounting style and is terminated via solder to discrete wires. Contacts are gold-plated and non-gender specific, ensuring low contact resistance of 50 mΩ max initially and 100 mΩ after environmental testing. The plug is shielded for EMI protection and includes a strong locking mechanism that withstands pull forces up to 49N. Electrical ratings include 100mA DC current, 1000 MΩ min insulation resistance, and 350V AC dielectric withstanding voltage. The connector is rated for 10,000 mating cycles and operates over a temperature range of -55°C to +85°C. The black housing and robust construction make it suitable for demanding consumer applications such as digital cameras, PDAs, and notebook computers.
| Qty | Low | High |
|---|---|---|
| 500+ | $1.97 | $1.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 positions.
0.5mm (0.020").
100mA DC.
350V AC (dielectric withstanding voltage).
Free hanging (in-line).
-55°C to +85°C.
10000 cycles.
