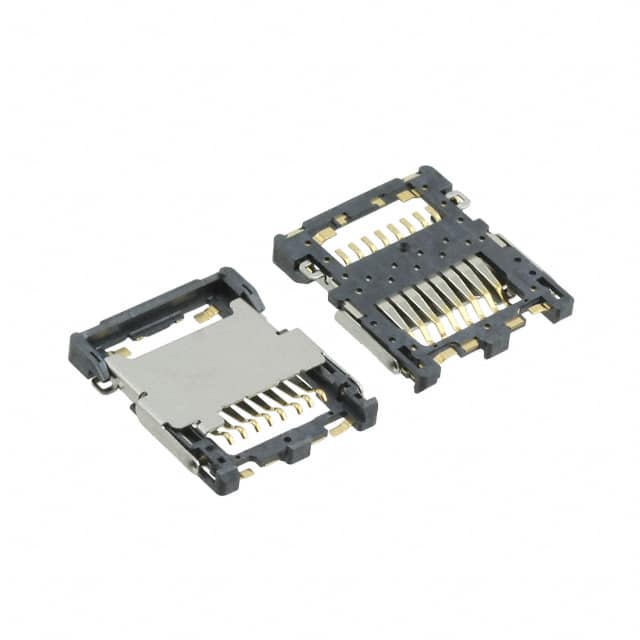

ST1W008S4ER1500 JAE Electronics ST1W008S4ER1500 is a microSD card connector with hinged lid insertion and removal. It features 8 positions, surface mount right angle mounting, and gold flash contacts.
Mfr Part #:

ST1W008S4ER1500

Available from 4 distributors
Mfr Name: JAE Electronics
JAE Electronics
JAE Electronics ST1W008S4ER1500 is a microSD card connector with hinged lid insertion and removal. It features 8 positions, surface mount right angle mounting, and gold flash contacts.
✓ Total Stock: 52,116 pcs
$ Price Range: $1.04 - $1.92

ST1W008S4ER1500 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ST1W008S4ER1500 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Current Rating
Durability
Height Above Board
Insertion, Removal Method
Mounting Feature
Mounting Type
Number of Positions
Storage Temperature
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

ST1W008S4ER1500 Description

Short technical summary and product information.

The JAE Electronics ST1W008S4ER1500 is a microSD card connector from the ST1 series, designed for hinged lid card insertion and removal. It provides 8 positions with a surface mount, right angle mounting configuration and a standard top mounting feature.



Electrical ratings include a maximum current of 0.5A and a maximum voltage of 10V. The connector is rated for a minimum of 10,000 insertion/removal cycles, making it suitable for applications requiring reliable repeated use. The contact finish is gold flash, and the height above board is 2.00mm.



The connector is supplied in tape and reel packaging with a standard package quantity of 1500 pieces. It is RoHS3 compliant, REACH unaffected, and has an MSL level of 1 (unlimited).

ST1W008S4ER1500 Quick Information

Product Type: microSD Card Connector
Series: ST1
Canonical Name: JAE Electronics ST1W008S4ER1500 microSD Hinged Lid Connector
Subcategory: Hinged Lid

ST1W008S4ER1500 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ST1W008S4ER1500 Estimated Pricing

Qty Low High
1+ $1.92 $1.92
10+ $1.63 $1.63
25+ $1.46 $1.46
100+ $1.39 $1.39
250+ $1.30 $1.30
500+ $1.24 $1.24
1,000+ $1.15 $1.15
1,500+ $1.08 $1.08
3,000+ $1.04 $1.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

ST1W008S4ER1500 Features

  • Hinged lid card insertion and removal.
  • Rated for 0.5A maximum current.
  • Rated for 10V maximum voltage.
  • Gold flash contact finish.
  • 10,000 cycle minimum durability.

ST1W008S4ER1500 Applications

  • Consumer electronics memory card interfaces.
  • Portable device data storage connections.
  • Embedded system microSD card slots.

ST1W008S4ER1500 FAQs

6 frequently asked questions generated from this part’s specifications.
What type of card does this connector accept?

This connector accepts Secure Digital microSD cards.

What is the mounting type for this connector?

The connector is surface mount, right angle.

How many positions does this connector have?

This connector has 8 positions.

What is the current and voltage rating?

The maximum current rating is 0.5A and the maximum voltage rating is 10V.

What is the contact finish?

The contact finish is gold flash.

What is the durability rating?

The connector is rated for a minimum of 10,000 insertion/removal cycles.
