ST1PS01AJR
STMicroelectronics
The STMicroelectronics ST1PS01AJR is a 400mA synchronous step-down DC-DC switching regulator. It features a fixed 1.8V output voltage and operates at a frequency of 2MHz.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The ST1PS01BJR is a synchronous step-down DC-DC switching regulator manufactured by STMicroelectronics. It features a nano-quiescent current design and can deliver up to 400mA of output current.
This regulator supports an input voltage range from 1.8V to 5.5V, making it suitable for various battery-powered applications. It offers fixed output voltage options including 1.1V, 1.2V, 1.5V, and 1.7V. The switching frequency is 2MHz, contributing to a compact solution size.

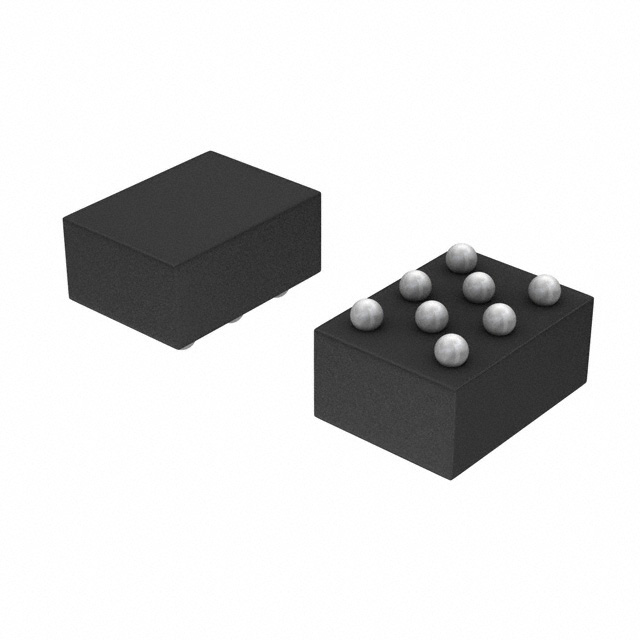

The ST1PS01BJR operates within an ambient temperature range of -40°C to 85°C. It is designed for surface mount applications and comes in an 8-UFBGA, FCBGA package. The device includes a synchronous rectifier for improved efficiency.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ST1PS01BJR has an output current capability of 400mA.
The input voltage range for the ST1PS01BJR is from 1.8V to 5.5V.
The ST1PS01BJR offers fixed output voltage options of 1.1V, 1.2V, 1.5V, and 1.7V.
The switching frequency of the ST1PS01BJR is 2MHz.
The operating temperature range of the ST1PS01BJR is -40°C to 85°C.
The ST1PS01BJR is available in an 8-UFBGA, FCBGA package.
Yes, the ST1PS01BJR is RoHS3 compliant.
