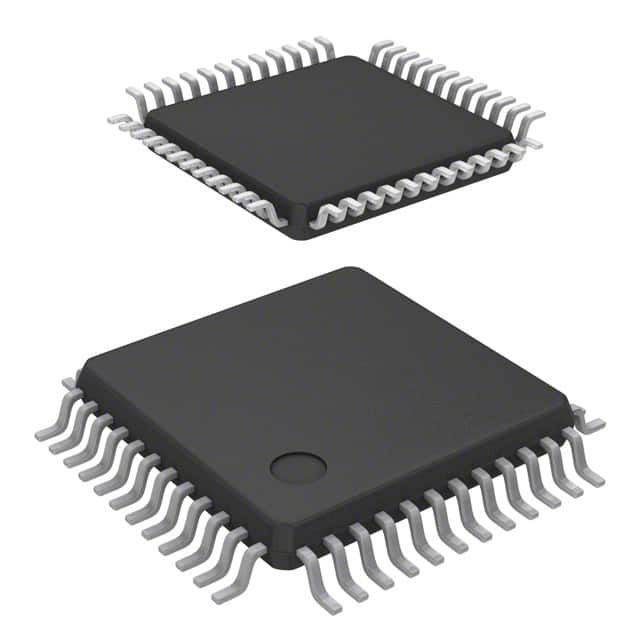

ST16C2550CQ48-F The Exar ST16C2550CQ48-F is a UART IC featuring 2 channels and supporting RS232 and RS485 protocols. It operates with a supply voltage range of 2.97V to 5.5V.
Mfr Part #:

ST16C2550CQ48-F

Available from 1 distributors
Mfr Name: Exar
Exar
The Exar ST16C2550CQ48-F is a UART IC featuring 2 channels and supporting RS232 and RS485 protocols. It operates with a supply voltage range of 2.97V to 5.5V.
✓ Total Stock: 715 pcs
$ Price Range: $0.30

ST16C2550CQ48-F Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
715 pcs
On Request
715 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ST16C2550CQ48-F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Channels
Protocol
Supplier Package
Supply Voltage
View Similar Products (0)

ST16C2550CQ48-F Description

Short technical summary and product information.

The ST16C2550CQ48-F from Exar is a Dual Universal Asynchronous Receiver/Transmitter (DUART) integrated circuit. This component offers two channels for serial communication, supporting both RS232 and RS485 protocols. It features a maximum data rate of 4Mbps and includes a 16-byte FIFO buffer for efficient data handling.



Designed for surface mounting, the ST16C2550CQ48-F comes in a 48-TQFP package. It operates within a wide supply voltage range of 2.97V to 5.5V and includes features such as false start bit detection and modem control. The internal oscillator and timer/counter enhance its functionality for various communication applications.



This UART IC is suitable for applications requiring reliable serial data transmission. Its robust feature set and standard packaging make it a versatile choice for embedded systems and communication interfaces.

ST16C2550CQ48-F Quick Information

Product Type: UART IC
Canonical Name: ST16C2550CQ48-F UART IC
Subcategory: UART IC

ST16C2550CQ48-F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

ST16C2550CQ48-F Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

ST16C2550CQ48-F Features

  • Dual UART channels for serial communication.
  • Supports RS232 and RS485 protocols.
  • Maximum data rate of 4Mbps.
  • 16-byte FIFO buffer included.
  • Surface mount 48-TQFP package.

ST16C2550CQ48-F Applications

  • Ideal for serial communication interfaces.
  • Suitable for industrial automation systems.
  • Used in embedded system designs.
  • Facilitates data logging applications.

ST16C2550CQ48-F FAQs

6 frequently asked questions generated from this part’s specifications.
What communication protocols does the ST16C2550CQ48-F support?

The ST16C2550CQ48-F supports RS232 and RS485 protocols.

What is the maximum data rate for the ST16C2550CQ48-F?

The maximum data rate for the ST16C2550CQ48-F is 4Mbps.

What is the supply voltage range for this UART IC?

The supply voltage range for the ST16C2550CQ48-F is 2.97V to 5.5V.

What package type is the ST16C2550CQ48-F available in?

The ST16C2550CQ48-F is available in a 48-TQFP package for surface mounting.

Does the ST16C2550CQ48-F have auto flow control?

No, the ST16C2550CQ48-F does not feature auto flow control.

What is the FIFO buffer size?

The FIFO buffer size is 16 bytes.
