| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Current | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Housing Material | |
| Input Type | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Technology | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

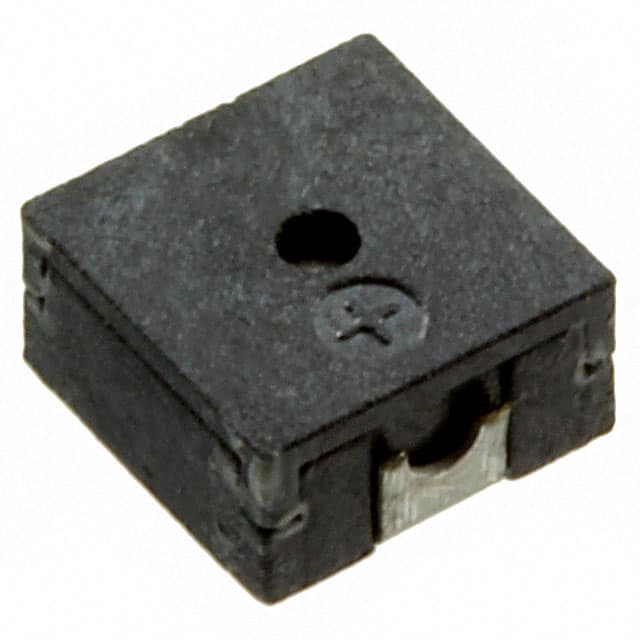

The Soberton ST-0402T is a surface-mount magnetic buzzer designed for audible indication in compact electronic devices. It operates at a rated voltage of 3V with an operating range of 2 to 4V and draws a maximum current of 90mA under 1/2 duty square wave conditions. The buzzer produces a 4kHz single tone with a sound pressure level of 70dB measured at 10cm.
This externally driven transducer requires an external drive circuit and accepts a zero-peak signal input. The coil resistance is 17 ±3 Ω, and the device is suitable for applications requiring a clear, consistent tone in a small footprint.
The buzzer measures 4.00mm x 4.00mm x 2.00mm and weighs 0.1g. It features a black LCP housing with a top port and solder pad termination for surface mount assembly. It is RoHS compliant and operates over a temperature range of -30°C to 70°C, with storage from -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.01 | $5.01 |
| 10+ | $3.94 | $3.94 |
| 25+ | $3.59 | $3.59 |
| 50+ | $3.35 | $3.35 |
| 100+ | $3.23 | $3.23 |
| 3,000+ | $2.64 | $2.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 3V with an operating range of 2 to 4V.
The sound pressure level is 70dB measured at 10cm at rated voltage.
It is a transducer requiring an external drive circuit (externally driven) and accepts a zero-peak signal input.
It is a surface mount device with solder pad terminals in a 4.00mm x 4.00mm x 2.00mm LCP housing.
The operating temperature range is -30°C to 70°C as per the datasheet.
Yes, the datasheet indicates RoHS compliance.
