The ST-03BL is a magnetic transducer buzzer from Soberton Inc., designed for applications requiring an audible alert or tone. It operates at a rated voltage of 3.6V with an operating voltage range of 2.5V to 4.5V. The buzzer produces a sound pressure level of 82dB at 10cm when driven at its rated frequency of 2300Hz with a square wave signal.

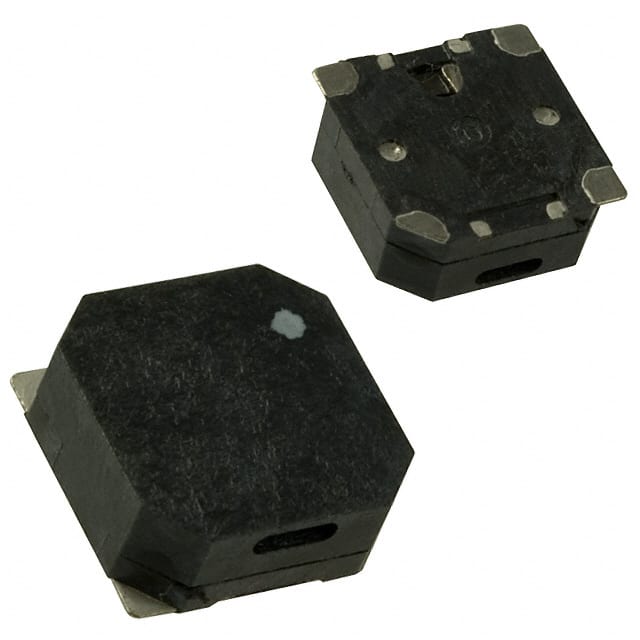

This component is an externally driven transducer, meaning it requires an external drive circuit to generate the audio signal. It features a side port and is housed in a compact 8.5mm x 8.5mm x 3.0mm surface-mount package with solder pad terminations. The housing is made of black LCP material.
Key electrical specifications include a maximum current consumption of 100mA and a coil resistance of 16Ω ±3Ω. The buzzer is rated for operation over a temperature range of -20°C to +70°C and can be stored between -30°C and +80°C. It is RoHS compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.38 | $3.38 |
| 10+ | $2.66 | $2.66 |
| 25+ | $2.42 | $2.42 |
| 50+ | $2.26 | $2.26 |
| 100+ | $2.11 | $2.11 |
| 250+ | $2.08 | $2.08 |
| 1,000+ | $1.80 | $1.80 |
| 2,000+ | $1.70 | $1.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 3.6V.
The sound pressure level is 82dB at 10cm when driven at 3.6V and 2300Hz.
The rated frequency is 2300Hz.
Yes, it is an externally driven transducer and requires an external drive circuit.
It is a surface mount device with solder pad terminations.
The dimensions are 8.5mm x 8.5mm x 3.0mm.
The operating temperature range is -20°C to +70°C.
