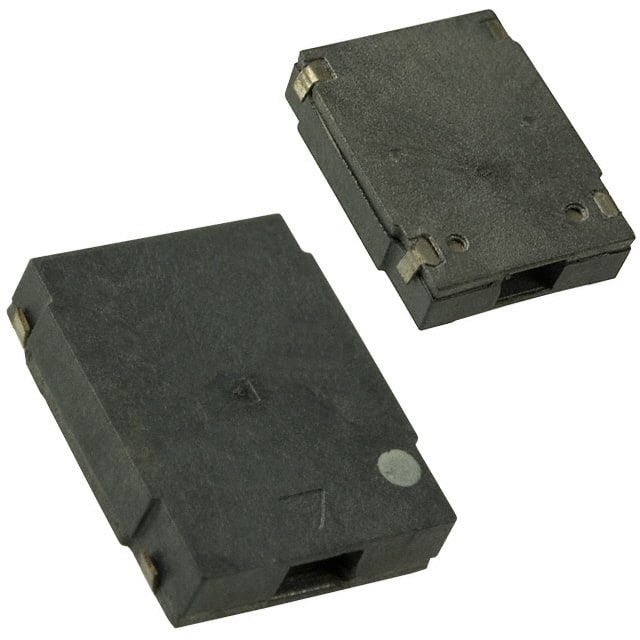

ST-01CL Magnetic sound transducer from Soberton Inc. in an 11x14mm SMD package with 2.3kHz single tone and IP65 protection.
Mfr Part #:

ST-01CL

Available from 1 distributors
Mfr Name: Soberton Inc.
Soberton Inc.
Magnetic sound transducer from Soberton Inc. in an 11x14mm SMD package with 2.3kHz single tone and IP65 protection.
✓ Total Stock: 220 pcs

ST-01CL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
220 pcs
On Request
220 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ST-01CL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Driver Circuitry
Frequency
Height
Ingress Protection
Lead Style
Length
Mounting Type
Operating Mode
Port Location
Technology
Termination
Termination Style
Voltage Range
Width
View Similar Products (0)

ST-01CL Description

Short technical summary and product information.

The Soberton ST-01CL is a magnetic sound transducer designed for surface mount assembly. It operates in single tone mode with a frequency of 2.3kHz and draws 70mA of current within a 4 to 6V voltage range. The component features solder pad terminals and a side port location for sound emission.



This transducer is rated IP65 for dust tightness and water resistance, making it suitable for environments requiring protection against particulates and moisture. The housing material is PA46, and the package measures 11.00mm in length, 14.00mm in width, and 3.00mm in height.



The ST-01CL uses magnetic technology and requires an external driving circuit. It is designed for applications where a compact, low-profile audible alert is needed with environmental sealing.

ST-01CL Quick Information

Product Type: Magnetic Buzzer
Series: ST-01CL
Canonical Name: ST-01CL Magnetic Sound Transducer
Subcategory: Buzzers

ST-01CL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ST-01CL Features

  • Magnetic transducer with 2.3kHz single tone.
  • Surface mount 11x14mm SMD package.
  • IP65 dust tight and water resistant.
  • Externally driven transducer circuitry.
  • Side port for sound emission.

ST-01CL Applications

  • Provides audible alerts in sealed electronics.
  • Suitable for outdoor or industrial equipment.
  • Compact SMD for space-constrained designs.
  • Used in portable and battery-powered devices.

ST-01CL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the ST-01CL?

The operating voltage range is 4 to 6V.

What is the frequency and sound type of this buzzer?

It produces a single tone at 2.3kHz.

What is the mounting style of the ST-01CL?

Surface mount with solder pad termination.

What driver circuitry does this transducer require?

It is a transducer requiring an external driver circuit.

What is the IP rating of the ST-01CL?

IP65 - dust tight and water resistant.

What are the dimensions of this buzzer?

11.00mm length, 14.00mm width, 3.00mm height.
