| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

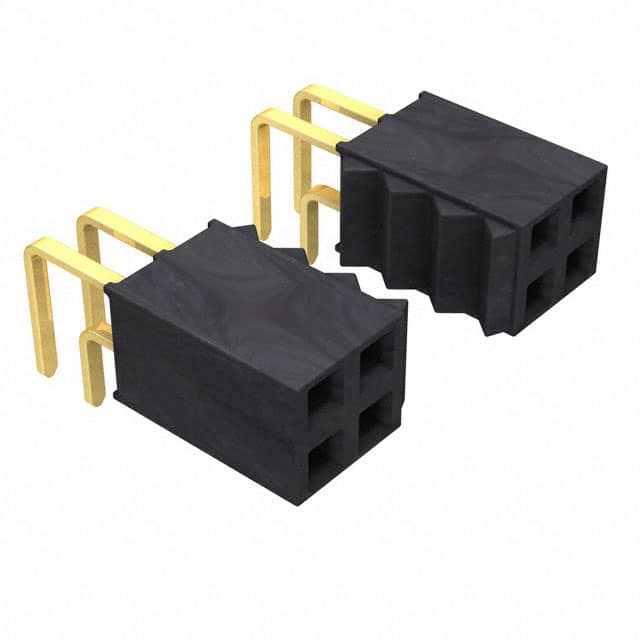

The Samtec SSW-116-02-G-D-RA is a right angle, through hole receptacle from the SSW series. It features 32 positions arranged in 2 rows with a 0.100" (2.54mm) pitch and row spacing. The insulation is molded in black Liquid Crystal Polymer rated UL94 V-0, and the contacts are phosphor bronze with 20.0µin (0.51µm) gold plating on the contact area.
This connector is designed for board-to-board or cable interconnects, using a push-pull fastening system. It is rated for 4.7A per contact (2 pins powered) and 465 VAC / 655 VDC, with an operating temperature range of -55°C to +125°C. The right angle profile is suited for space-constrained PCB layouts where a low-profile or 90-degree connection is required.
Available in single or double row configurations, the SSW series mates with Samtec TSW, MTSW, MTLW, DW, EW, ZW, TSS, ZSS, TSM, TSSH, and HTSS header series.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.54 | $5.54 |
| 25+ | $5.42 | $5.42 |
| 50+ | $5.36 | $5.36 |
| 100+ | $5.16 | $5.16 |
| 500+ | $4.11 | $4.11 |
| 1,000+ | $3.75 | $3.75 |
| 2,500+ | $3.28 | $3.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 32 positions in 2 rows.
The current rating is 4.7A per contact (2 pins powered).
The voltage rating is 465 VAC / 655 VDC.
It uses through hole, right angle mounting.
