| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination |

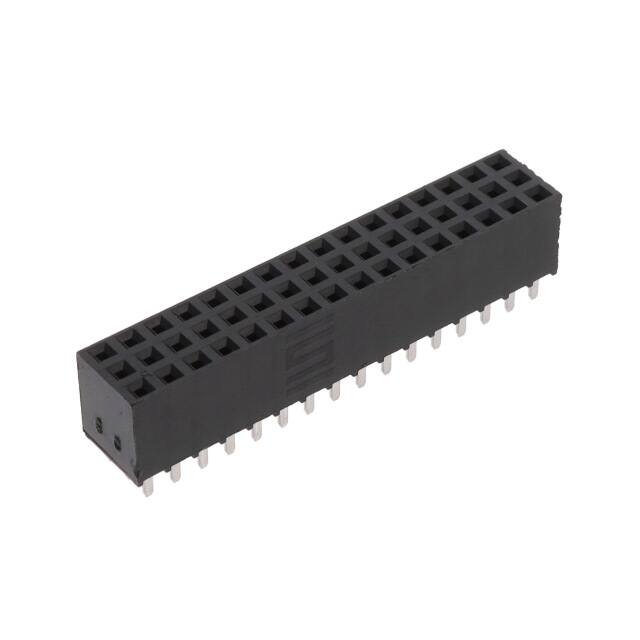

The Samtec SSW-116-01-S-T is a 48-position receptacle connector with three rows of forked contacts. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for high-density board-to-board or cable interconnection. The connector uses through hole mounting with solder termination and a push-pull fastening system. The black insulation body is rated UL94 V-0 for flammability, and the operating temperature range is -55°C to 125°C. Each contact is rated for 4.7A, with a contact finish thickness of 30.0µin (0.76µm). The contact finish is specified as Tin, but note that the part number and introtext suggest Gold finish. The connector is designed for applications requiring reliable signal and power distribution in compact spaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.38 | $7.38 |
| 10+ | $7.25 | $7.25 |
| 50+ | $6.84 | $6.84 |
| 100+ | $6.01 | $6.01 |
| 500+ | $5.64 | $5.64 |
| 1,000+ | $4.94 | $4.94 |
| 2,000+ | $4.69 | $4.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 positions.
2.54mm (0.100 inches).
4.7A per contact.
Through hole.
-55°C to 125°C.
UL94 V-0.
3 rows.
