| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

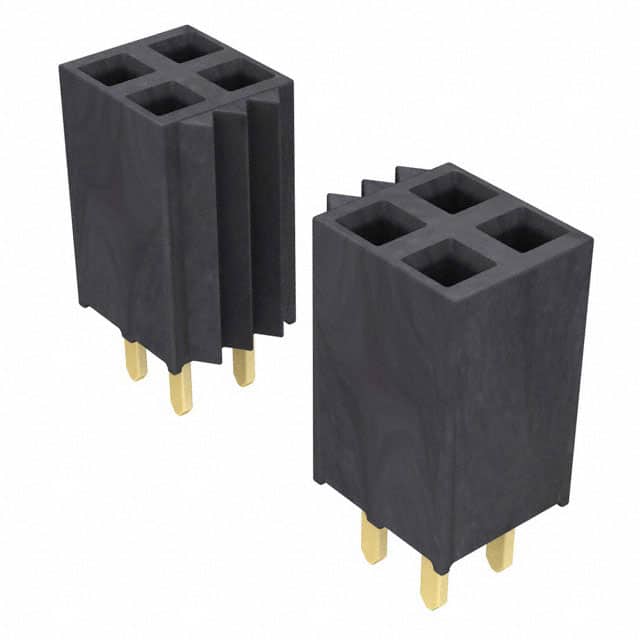

The Samtec SSW-116-01-G-D is a 32 position, 2 row through hole receptacle designed for board to board or cable applications. It features forked contacts with a gold finish of 20.0µin (0.51µm) and a push-pull fastening type. The connector has a pitch of 2.54mm (0.100") and a row spacing of 2.54mm (0.100").
This receptacle is rated for 4.7A per contact and operates over a temperature range of -55°C to 125°C. The insulation is black with a height of 8.51mm (0.335") and is made of material rated UL94 V-0 for flammability. The contact length is 2.64mm (0.104").
The connector uses through hole mounting with solder termination, making it suitable for robust PCB assembly. All 32 positions are loaded. The part is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.98 | $5.98 |
| 100+ | $5.08 | $5.08 |
| 500+ | $3.94 | $3.94 |
| 1,000+ | $3.56 | $3.56 |
| 2,500+ | $3.47 | $3.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm (0.100") row spacing.
4.7A per contact.
Through hole with solder termination.
-55°C to 125°C.
Gold, 20.0µin (0.51µm) thickness.
UL94 V-0.
