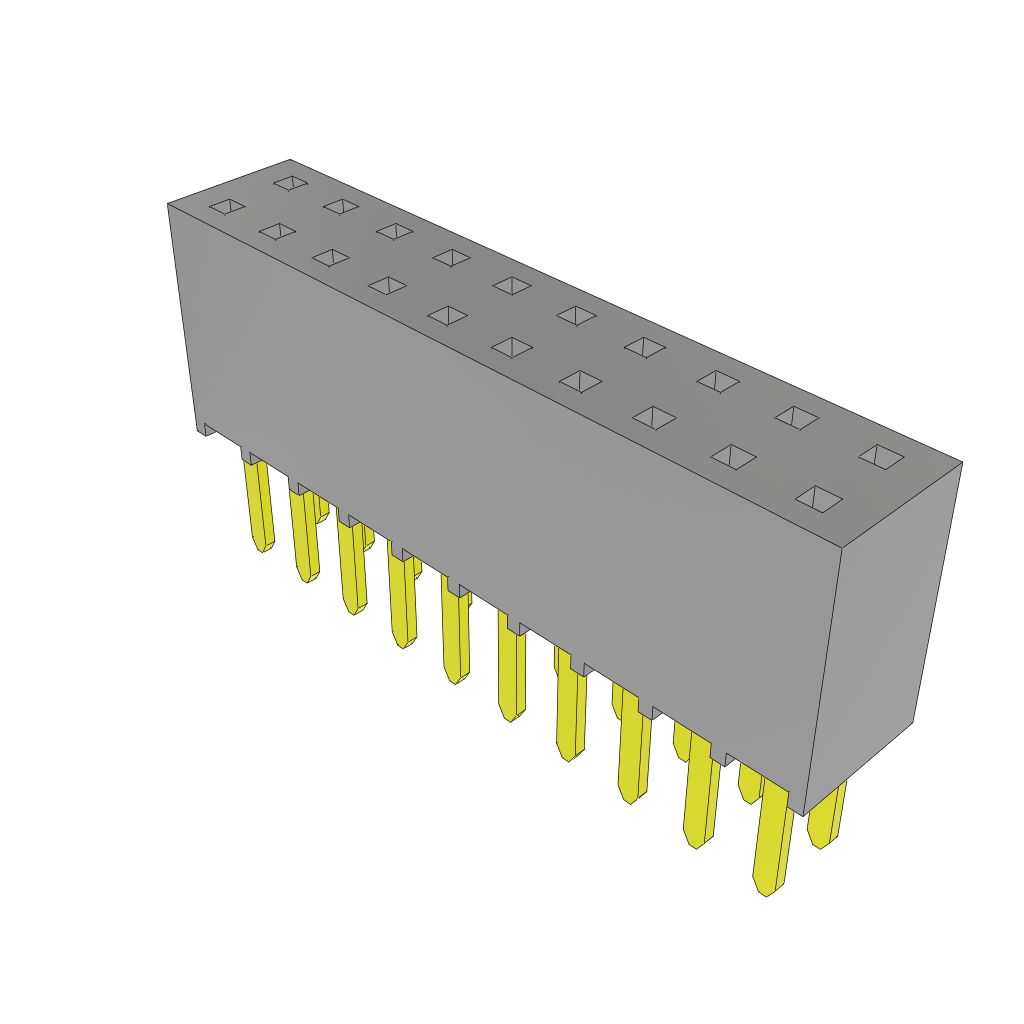

SSW-110-02-H-D The Samtec Inc. SSW-110-02-H-D is a 20-position socket strip receptacle with a 0.100" pitch and gold contact finish. It is designed for through-hole mounting.
Mfr Part #:

SSW-110-02-H-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. SSW-110-02-H-D is a 20-position socket strip receptacle with a 0.100" pitch and gold contact finish. It is designed for through-hole mounting.
Stock on Request
$ Price Range: $1.00

SSW-110-02-H-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSW-110-02-H-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Style
Termination
View Similar Products (0)

SSW-110-02-H-D Description

Short technical summary and product information.

The Samtec Inc. SSW-110-02-H-D is a 20-position socket strip receptacle designed for board-to-board or cable applications. It features a 0.100" (2.54mm) pitch and 2 rows, with a total of 20 positions loaded.



This receptacle has a gold contact finish with a thickness of 30.0µin (0.76µm) and a contact length of 0.194" (4.93mm). The current rating per contact is 4.7A. The insulation height is 8.51mm (0.335"), and the insulation color is black. The operating temperature range is from -55°C to 125°C.



Designed for through-hole mounting, this connector has a push-pull fastening type and a solder termination style. It meets UL94 V-0 flammability rating. The product is part of the SSW series and offers performance up to 8 Gbps.



This versatile socket strip receptacle is suitable for various applications requiring reliable interconnects.

SSW-110-02-H-D Quick Information

Product Type: Socket Strip Receptacle
Series: SSW
Canonical Name: Samtec Inc. SSW-110-02-H-D Socket Strip Receptacle, Solder Tail, 20 Positions, 2 Rows, 0.100" Pitch
Subcategory: Headers, Receptacles, Female Sockets

SSW-110-02-H-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSW-110-02-H-D Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSW-110-02-H-D Features

  • 20 positions in 2 rows.
  • 0.100 inch (2.54mm) pitch.
  • Gold contact finish, 30µin thickness.
  • Through-hole mounting style.
  • Operating temperature -55°C to 125°C.

SSW-110-02-H-D Applications

  • Used for PCB board-to-board stacking connections.
  • Suitable for high-speed signals up to 8 Gbps.
  • Used in cable-to-board interconnect systems.
  • Ideal for through-hole socket strip applications.

SSW-110-02-H-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SSW-110-02-H-D have?

The SSW-110-02-H-D has 20 positions.

What is the pitch of the SSW-110-02-H-D connector?

The pitch of the SSW-110-02-H-D connector is 0.100 inches (2.54mm).

What is the current rating per contact for the SSW-110-02-H-D?

The current rating per contact for the SSW-110-02-H-D is 4.7A.

What is the operating temperature range for this connector?

The operating temperature range for this connector is -55°C to 125°C.

What is the mounting type for the SSW-110-02-H-D?

The mounting type for the SSW-110-02-H-D is Through Hole.

What is the contact finish and thickness?

The contact finish is Gold with a thickness of 30.0µin (0.76µm).

What is the flammability rating?

The material flammability rating is UL94 V-0.
