| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | 618 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum @ Tin finish) | |
| Pitch | |
| Row Spacing | |
| SMT Lead Coplanarity | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

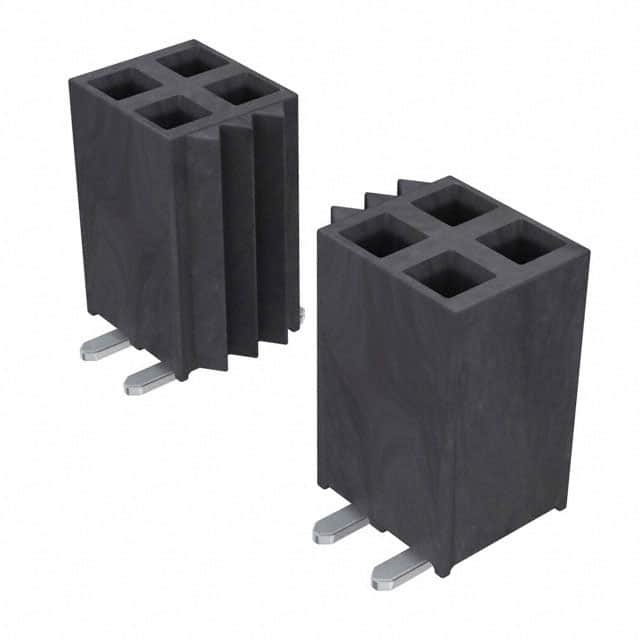

The Samtec SSW-105-22-S-D-VS is a 10 position, 2 row surface mount receptacle from the SSW series. It features a 2.54mm (0.100") pitch and 2.54mm row spacing, making it suitable for board-to-board or cable-to-board applications. The contacts are fork type with a tin finish (30 µin thickness) over 50 µin nickel.
Electrical ratings include 4.7A per contact (2 pins powered) and a voltage rating of 465 VAC / 655 VDC. The operating temperature range is -55°C to +105°C for tin finish. The insulation material is black LCP with a UL94 V-0 flammability rating.
Mechanical features include a push-pull fastening type, solder termination, and an insertion depth range of 3.68mm to 6.35mm. The SMT lead coplanarity is 0.10mm max. The insulator height is 8.51mm. The part is lead-free solderable and RoHS compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.39 | $3.39 |
| 42+ | $3.13 | $3.13 |
| 84+ | $2.37 | $2.37 |
| 504+ | $2.36 | $2.36 |
| 1,008+ | $2.19 | $2.19 |
| 2,016+ | $1.87 | $1.87 |
| 5,040+ | $1.67 | $1.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows, all positions loaded.
The pitch is 2.54mm (0.100").
The current rating is 4.7A per contact (2 pins powered).
The voltage rating is 465 VAC / 655 VDC.
It is a surface mount (SMT) component with solder termination.
The operating temperature range is -55°C to +105°C for tin finish.
The contact finish is tin with 30µin thickness over 50µin nickel.
