| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,087 pcs
|
2087 pcs | On Request | 1 | On Request | On Request | 543 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Halogen Free | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating (Maximum @ AC) | |
| Voltage Rating (Maximum @ DC) |

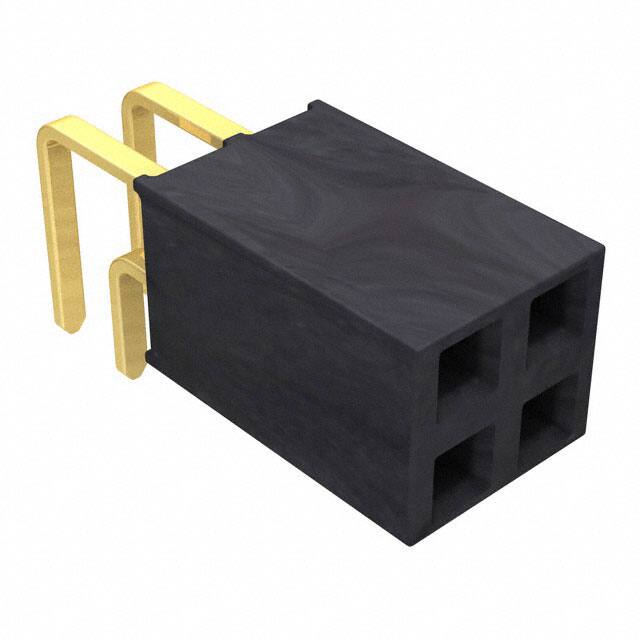

The SSW-102-02-G-D-RA from Samtec is a 4 position dual row right angle through-hole socket strip receptacle on a 2.54mm pitch. It features phosphor bronze contacts with 20µin gold plating over 50µin nickel, housed in a black liquid crystal polymer insulator rated UL94 V-0. This connector is designed for board-to-board or cable applications with push-pull fastening and full tail insertion depth of 3.68mm to 6.35mm.
Each contact is rated for 4.7A (2 pins powered) with a maximum voltage rating of 465 VAC / 655 VDC. The operating temperature range spans -55°C to +125°C, and the part supports data rates up to 8 Gbps. The through-hole right angle termination style is suitable for standard solder processes and is lead-free solderable per the -D row option.
This connector mates with Samtec TSW, MTSW, MTLW, DW, EW, ZW, TSS, ZSS, TSM, TSSH, and HTSS series headers. The 2.54mm pitch and dual row configuration are common in space-constrained board stacking and signal routing applications. The right angle orientation facilitates low-profile connections parallel to the PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
| 100+ | $1.17 | $1.17 |
| 1,000+ | $0.93 | $0.93 |
| 2,000+ | $0.85 | $0.85 |
| 5,000+ | $0.68 | $0.68 |
| 10,000+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 4 positions arranged in 2 rows.
The current rating is 4.7A per contact with 2 pins powered.
Maximum voltage ratings are 465 VAC and 655 VDC.
Through-hole, right angle.
