| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,368 pcs
|
4368 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request | |
|
2,900 pcs
|
2900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,464 pcs
|
2464 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request | |
|
346 pcs
|
346 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Supply |

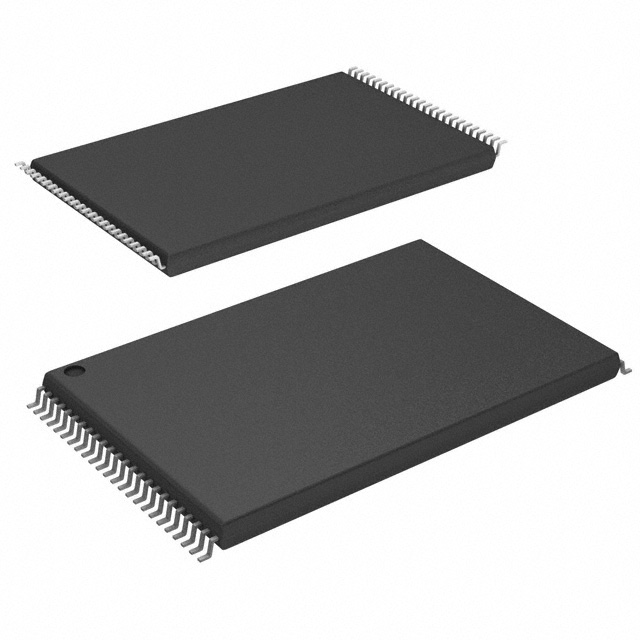

The SST39VF1601-70-4C-EKE from Microchip Technology is a 16Mbit CMOS Multi-Purpose Flash Plus (MPF+) memory device manufactured using SuperFlash technology. It offers a parallel interface and a memory organization of 1M x 16 bits.
This flash memory operates with a wide supply voltage range of 2.7V to 3.6V, making it suitable for various applications. Key electrical characteristics include low power consumption, with typical active current at 5 MHz being 9 mA and standby current at 3 µA. It supports fast erase and word-program operations, with typical sector erase times of 18 ms and word program times of 7 µs.
The device features hardware block protection and a hardware reset pin. It is available in two package options: a 48-lead TSOP (12mm x 20mm) and a 48-ball TFBGA (6mm x 8mm), both supporting surface mount technology.
This flash memory conforms to JEDEC standard pinouts for x16 memories and is designed for reliability and manufacturability. It is suitable for applications requiring non-volatile data storage.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SST39VF1601-70-4C-EKE has a memory size of 16Mbit.
The interface type is Parallel.
The SST39VF1601-70-4C-EKE writes (Program or Erase) with a 2.7-3.6V power supply.
The typical active current is 9 mA at 5 MHz, and the standby current is 3 µA.
It is available in a 48-lead TSOP (12mm x 20mm) and a 48-ball TFBGA (6mm x 8mm).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
