| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | 2006 ? | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Interface | |
| Lead Style | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Write Cycle Time |
The Microchip Technology SST39VF010-70-4C-NHE is a 1Mbit Multi-Purpose Flash (MPF) memory IC manufactured using CMOS SuperFlash technology. Organized as 128K x 8 bits, it offers a fast read access time of 70 ns and a write cycle time of 20 µs.
This device operates from a single voltage supply ranging from 2.7V to 3.6V, making it suitable for a wide array of applications. It features uniform 4 KByte sectors for efficient erasing and programming. The SST39VF010-70-4C-NHE provides superior reliability with an endurance of 100,000 cycles and data retention exceeding 100 years.

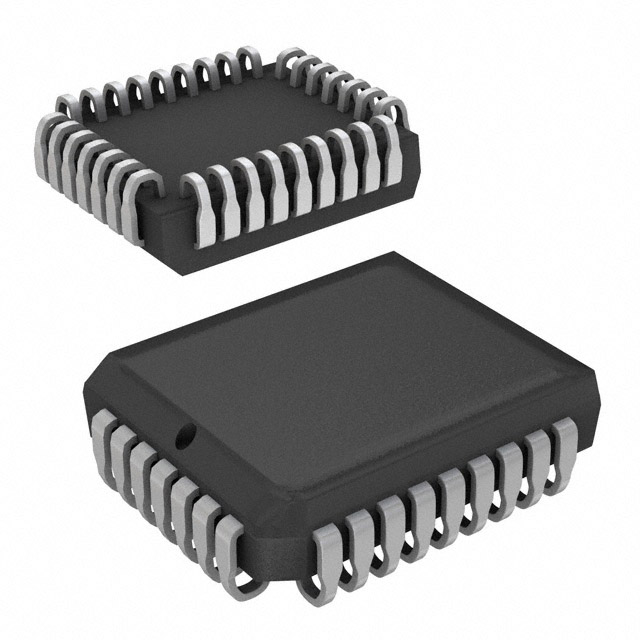

Packaged in a 32-lead PLCC, this surface-mount component is designed for ease of integration into various electronic designs. Its low power consumption, with typical active current of 5 mA and standby current of 1 µA at 14 MHz, further enhances its utility in power-sensitive applications.
Key electrical characteristics include a byte-program time of 14 µs and sector erase time of 18 ms. The device supports JEDEC standard pinouts and command sets, ensuring compatibility with existing systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SST39VF010-70-4C-NHE has a memory size of 1 Mbit.
The memory organization is 128K x 8.
It is a Flash memory.
The interface type is Parallel.
The access time is 70 ns.
The operating voltage range is 2.7V to 3.6V.
The operating temperature range is 0°C to 70°C.
