| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,105 pcs
|
2105 pcs | On Request | 1 | On Request | On Request | 09+11+ | On Request | On Request | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | 09+11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacity | |
| Interface | |
| Mounting Type | |
| Package / Case |

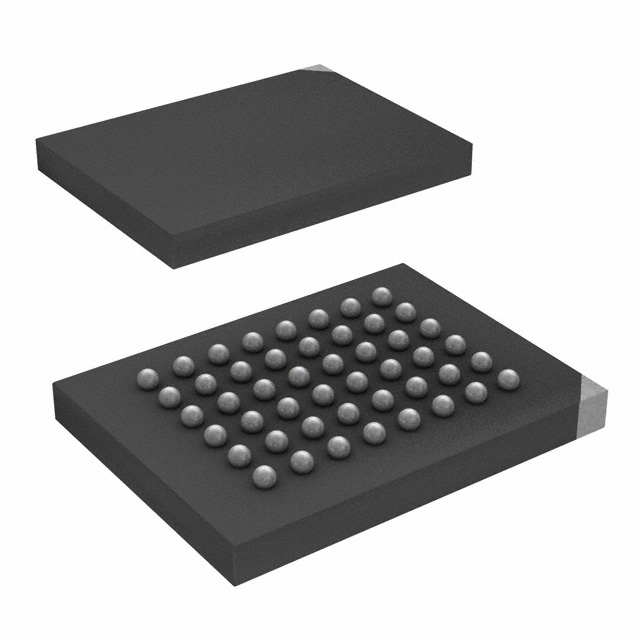

The SST39LF020-45-4C-B3KE is a 2Mbit CMOS Multi-Purpose Flash (MPF) memory device manufactured by SST using their proprietary SuperFlash technology. This device is organized as 256K x 8 bits and provides a fast read access time of 55 ns. It operates with a write voltage range of 3.0-3.6V and conforms to JEDEC standard pinouts for x8 memories.
Key features include superior reliability with an endurance of 100,000 cycles and data retention exceeding 100 years. It offers low power consumption with typical active current of 5 mA and standby current of 1 µA at 14 MHz. The device supports sector erase capability with uniform 4 KByte sectors and fast programming times.
This particular part, SST39LF020-45-4C-B3KE, is supplied in a 48-ball TFBGA package measuring 6mm x 8mm and is designed for surface mount applications. It is noted as End-of-Life (EOL).
This flash memory is suitable for various applications requiring non-volatile data storage, such as firmware storage, data logging, and embedded systems.
The maximum read cycle time is 45 ns.
The write (program or erase) power supply voltage range is 3.0-3.6 V.
The device has a capacity of 2 Mbit organized as 256K x 8.
It is supplied in a 48-ball TFBGA (Thin Fine-Pitch Ball Grid Array) package measuring 6mm x 8mm.
The typical endurance is 100,000 program/erase cycles.
Data retention is greater than 100 years.
