SST12CP11-QVCE The Microchip Technology SST12CP11-QVCE is an RF Power Amplifier designed for 802.11 g/n applications operating in the 2.4-2.5 GHz frequency band. It offers high gain and high linear output power.
Mfr Part #:

SST12CP11-QVCE

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology SST12CP11-QVCE is an RF Power Amplifier designed for 802.11 g/n applications operating in the 2.4-2.5 GHz frequency band. It offers high gain and high linear output power.
✓ Total Stock: 2,000 pcs
$ Price Range: $0.98

SST12CP11-QVCE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request 1308 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SST12CP11-QVCE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Gain
Lead Spacing
Mounting Type
P1dB
RF Type
Supplier Device Package
View Similar Products (0)

SST12CP11-QVCE Description

Short technical summary and product information.

The SST12CP11-QVCE is a high-power, high-gain power amplifier (PA) from Microchip Technology, built on InGaP/GaAs HBT technology. It is designed for applications operating within the 2.4-2.5 GHz frequency band, such as WLAN (IEEE 802.11b/g/n) and WiMax (IEEE 802.16e).



This amplifier typically provides 34 dB of gain across the 2.4–2.5 GHz range. It delivers high linear output power, with a P1dB greater than 30 dBm. The device meets 802.11g OFDM ACPR requirements up to 28.5 dBm and 802.11b ACPR requirements up to 28.5 dBm. It also exhibits good linearity, with typically ~3% added EVM at 25 dBm output power for 54 Mbps 802.11g signals.



The SST12CP11-QVCE features high-speed power-up/down control with turn-on/off times less than 100 ns. It offers 10:1 VSWR survivability and includes on-chip power detection. The amplifier is designed for simple input/output matching and easy board-level integration.

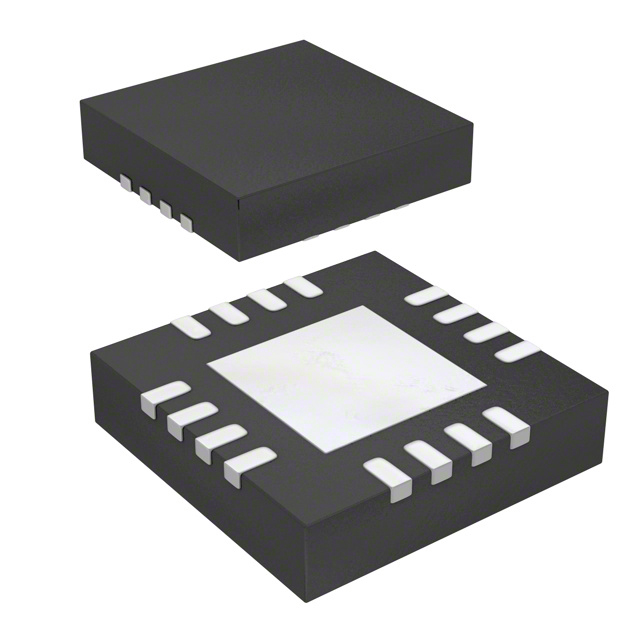

Packaged in a 16-contact VQFN (3mm x 3mm x 0.9mm) with a surface mount type, this component is suitable for various 2.4 GHz ISM wireless equipment.

SST12CP11-QVCE Quick Information

Product Type: RF Amplifier
Canonical Name: SST12CP11 RF Power Amplifier

SST12CP11-QVCE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SST12CP11-QVCE Estimated Pricing

Qty Low High
1+ $0.98 $0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

SST12CP11-QVCE Features

  • Typically 34 dB gain across 2.4–2.5 GHz.
  • High linear output power >30 dBm P1dB.
  • Meets 802.11g/b ACPR requirements.
  • Fast power-up/down time <100 ns.
  • 10:1 VSWR survivability.

SST12CP11-QVCE Applications

  • Ideal for WLAN 802.11b/g/n systems.
  • Suitable for WiMax 802.16e applications.
  • Used in 2.4 GHz ISM wireless equipment.
  • Applicable for cordless phones.
  • Designed for Home RF systems.

SST12CP11-QVCE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical gain of the SST12CP11-QVCE?

The SST12CP11-QVCE typically provides 34 dB gain across the 2.4–2.5 GHz frequency band.

What is the output power capability of the SST12CP11-QVCE?

The SST12CP11-QVCE has a P1dB of greater than 30 dBm and meets 802.11g OFDM ACPR requirement up to 28.5 dBm.

What wireless standards does the SST12CP11-QVCE support?

The SST12CP11-QVCE is designed for WLAN (IEEE 802.11b/g/n) and WiMax (IEEE 802.16e) applications.

What is the operating frequency range for the SST12CP11-QVCE?

The SST12CP11-QVCE operates in the 2.4GHz to 2.5GHz frequency range.

What package type is the SST12CP11-QVCE available in?

The SST12CP11-QVCE is available in a 16-contact VQFN package, specifically a 16-QFN (3x3) with an exposed pad.

How is the SST12CP11-QVCE mounted?

The SST12CP11-QVCE is designed for surface mount installation.
