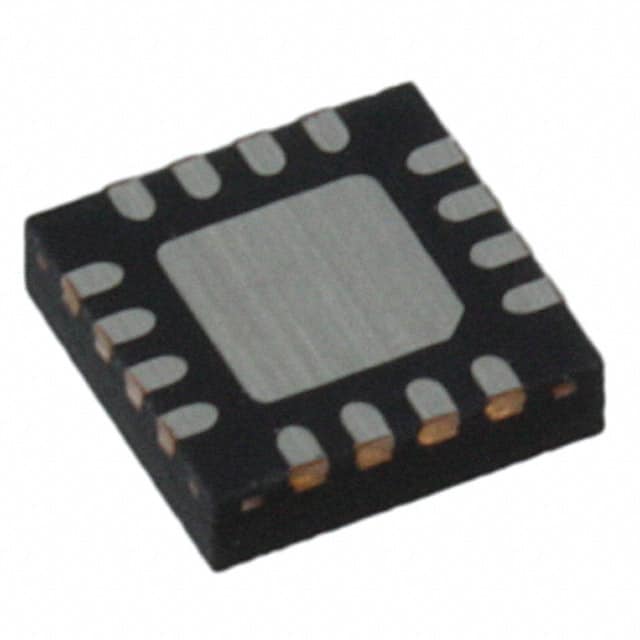

The SST11LP12-QCF from Microchip Technology is a high-power, high-gain RF amplifier based on InGaP/GaAs HBT technology. It is designed for high-efficiency applications within the 4.9-5.9 GHz frequency band, suitable for U.S., European, and Japanese markets.
This amplifier offers excellent linearity, meeting 802.11a OFDM Spectrum Mask requirements up to 24 dBm and achieving less than 3% EVM at 20 dBm for 54 Mbps 802.11a signals. It also meets 802.11n HT40 Spectrum Mask requirements typically up to 20 dBm. Key electrical characteristics include a gain of 30dB, an operating voltage range of 2.7V to 3.6V, and a typical operating current of 400mA.
The SST11LP12-QCF features on-chip power detection with a 20 dB dynamic range and simple input/output matching. It supports high-speed power-up/down control with turn-on/off times less than 100 ns. The device is housed in a compact 16-contact WQFN (3x3mm) package, suitable for surface mount applications.
Applications for this power amplifier include WLAN (IEEE 802.11a/n), Japan WLAN, HyperLAN2, and multimedia systems requiring high-linearity RF amplification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SST11LP12-QCF operates from 4.9 GHz to 5.8 GHz.
The SST11LP12-QCF has a gain of 30dB.
The operating voltage range for the SST11LP12-QCF is 2.7V to 3.6V.
The SST11LP12-QCF is supplied in a 16-WFQFN Exposed Pad package.
The SST11LP12-QCF is used in WLAN (IEEE 802.11a/n), Japan WLAN, HyperLAN2, and multimedia applications.
