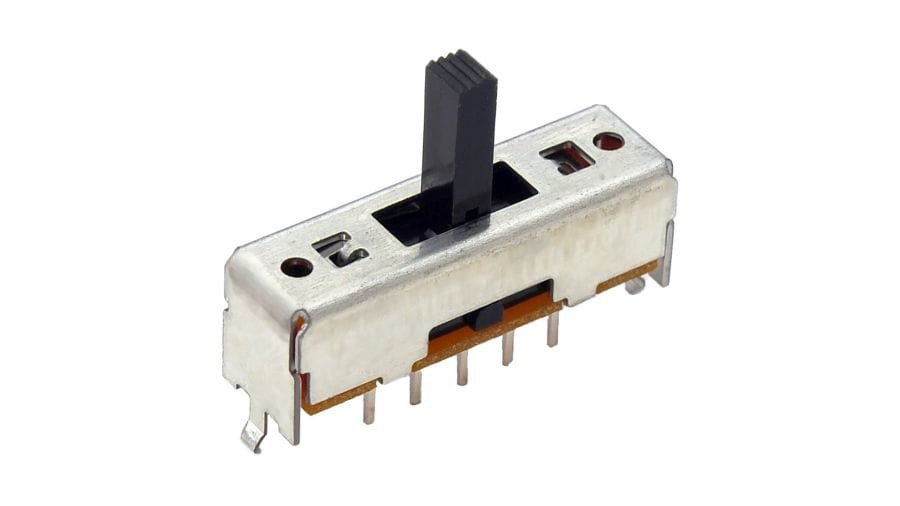

SSSU026300 The Alps Alpine SSSU026300 is a slide switch from the SSSU series, featuring a 30V DC rating and 0.1A current capacity. It offers 3 positions and 2 poles with a 3.0mm travel.
Mfr Part #:

SSSU026300

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SSSU026300 is a slide switch from the SSSU series, featuring a 30V DC rating and 0.1A current capacity. It offers 3 positions and 2 poles with a 3.0mm travel.
✓ Total Stock: 937 pcs
$ Price Range: $7.19

SSSU026300 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
937 pcs
On Request
937 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSSU026300 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Positions
View Similar Products (0)

SSSU026300 Description

Short technical summary and product information.

The Alps Alpine SSSU026300 is a slide switch belonging to the SSSU series, designed for general-purpose applications. This switch operates with a rating of 0.1A at 30V DC and features a 3.0mm travel distance. It is configured with 2 poles and 3 positions, offering non-shorting changeover timing.



The SSSU026300 switch has a mount height of 8.5mm and utilizes a snap-in mounting method. Its dimensions are 24.5mm in width, 7.0mm in depth, and 8.5mm in height. The initial contact resistance is a maximum of 25mΩ, increasing to 65mΩ after its rated lifetime of 10,000 cycles with load.



This slide switch is suitable for applications in audio and TV equipment. It is supplied in bulk packaging with a standard package quantity of 700 pieces.

SSSU026300 Quick Information

Product Type: Slide Switch
Series: SSSU
Canonical Name: SSSU Series Slide Switch
Subcategory: Slide Switch

SSSU026300 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSSU026300 Estimated Pricing

Qty Low High
1+ $7.19 $7.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSSU026300 Features

  • 2-pole, 3-position slide switch.
  • Rated for 0.1A at 30V DC.
  • 3.0mm travel distance.
  • Snap-in mounting type.
  • Non-shorting changeover timing.

SSSU026300 Applications

  • Suitable for switching power supplies.
  • Used in audio and TV equipment.
  • Ideal for control panel toggle switches.
  • Applicable in industrial automation devices.
  • Suitable for consumer electronic controls.

SSSU026300 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum voltage rating for the SSSU026300 slide switch?

The maximum voltage rating for the SSSU026300 slide switch is 30V DC.

What is the maximum current rating for the SSSU026300 slide switch?

The maximum current rating for the SSSU026300 slide switch is 0.1A.

How many poles and positions does the SSSU026300 slide switch have?

The SSSU026300 slide switch has 2 poles and 3 positions.

What is the travel distance of the SSSU026300 slide switch?

The travel distance of the SSSU026300 slide switch is 3.0mm.

What is the contact resistance of the SSSU026300 slide switch?

The initial contact resistance is a maximum of 25mΩ, and after lifetime, it is a maximum of 65mΩ.

What is the operating life of the SSSU026300 slide switch?

The operating life of the SSSU026300 slide switch is 10,000 cycles.

What are the dimensions of the SSSU026300 slide switch?

The dimensions of the SSSU026300 slide switch are 24.5mm x 7.0mm x 8.5mm.
