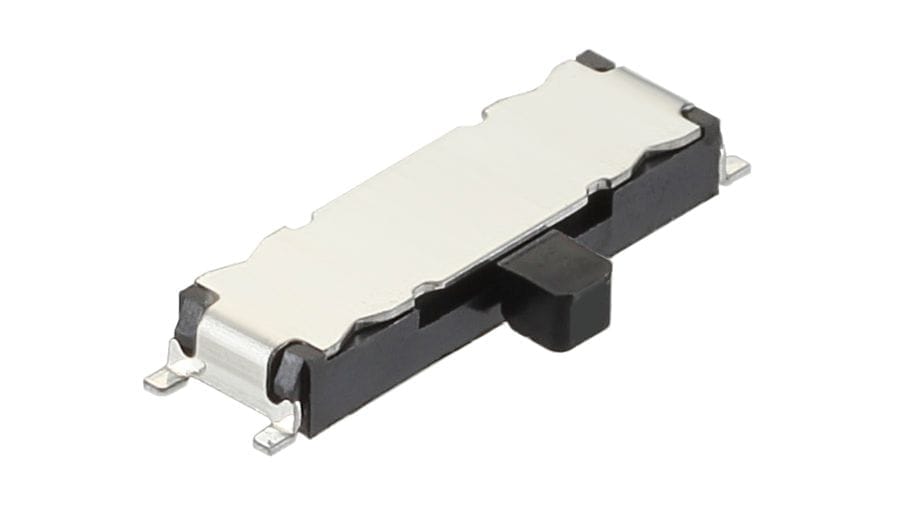

The Alps Alpine SSSS812201 is a surface mount slide switch belonging to the SSSS8 Series. This series is characterized by its thin profile, with a body height of only 1.4mm, making it suitable for space-constrained designs.
The SSSS812201 offers a travel distance of 2.0mm and operates at a maximum rating of 0.3A at 5V DC. It has a contact resistance of 70mΩ maximum initially and 130mΩ maximum after its rated operating life of 10,000 cycles.
This slide switch is designed for a variety of applications including mobile devices like smartphones and tablets, wearables, notebooks, and peripherals. It is also utilized in energy and industrial equipment, gaming consoles, virtual/augmented reality systems, healthcare equipment, and audio/TV devices.
The switch is available in a surface mount package, facilitating automated assembly processes. Its dimensions are 9.7mm in width, 2.6mm in depth, and 1.4mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 5V DC.
The maximum current rating is 0.3A DC.
The initial contact resistance is a maximum of 70mΩ, and after its lifetime, it is a maximum of 130mΩ.
The operating life is 10,000 cycles, both with and without load.
The dimensions are 9.7mm in width, 2.6mm in depth, and 1.4mm in height.
The mount height is 1.4mm.
The travel distance is 2.0mm.
