| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,250 pcs
|
2250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,596 pcs
|
1596 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Tape & Reel |

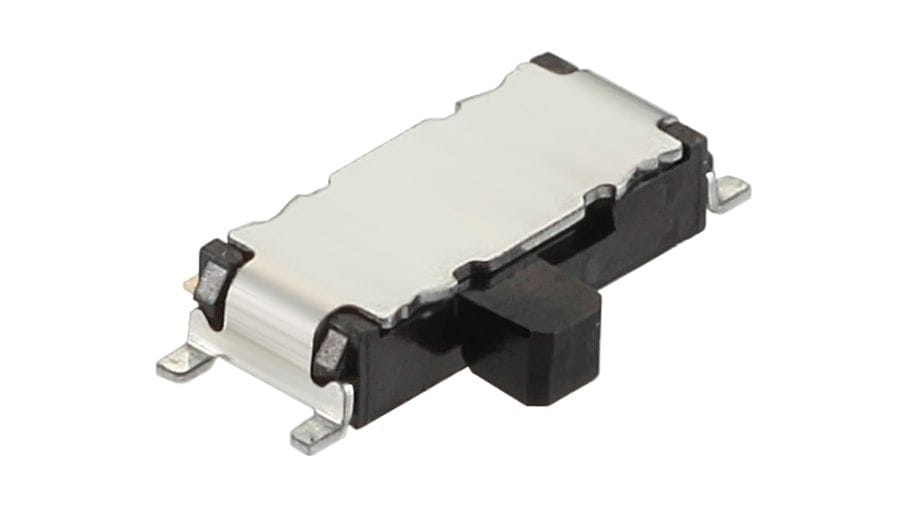

The Alps Alpine SSSS811101 is a surface-mount slide switch belonging to the SSSS8 Series. This series is characterized by its thin profile, with a body height of only 1.4mm, making it suitable for space-constrained applications.
The SSSS811101 switch has a travel distance of 1.5mm or 2.0mm and can be configured as a 1-pole or 2-pole device. It is rated for a maximum of 0.3A at 5V DC and a minimum of 50μA at 3V DC. The contact resistance is a maximum of 70mΩ initially and 130mΩ after its rated operating life of 10,000 cycles.
This slide switch is designed for various applications, including mobile devices like smartphones and tablets, wearables, notebooks, and peripherals. It also finds use in energy and industrial equipment such as robots and drones, gaming consoles, virtual/augmented reality devices, healthcare equipment, and audio/video devices.
The SSSS811101 is available in both vertical and horizontal actuator directions and supports reflow soldering. Its compact dimensions (6.7 x 4.1 x 1.4 mm for some variants) further enhance its suitability for miniaturized electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSSS811101 slide switch has a maximum rating of 0.3A at 5V DC and a minimum rating of 50μA at 3V DC.
The initial contact resistance is a maximum of 70mΩ, and after its rated lifetime, it is a maximum of 130mΩ.
The SSSS811101 slide switch has an operating life of 10,000 cycles, both with and without load.
The dimensions of the SSSS811101 slide switch are 6.7 x 4.1 x 1.4 mm (W x D x H) for some variants.
The SSSS811101 slide switch has a mount height of 1.4mm.
The SSSS811101 slide switch has a travel distance of 1.5mm or 2.0mm.
The Moisture Sensitivity Level (MSL) for the SSSS811101 slide switch is 1 Unlimited.
