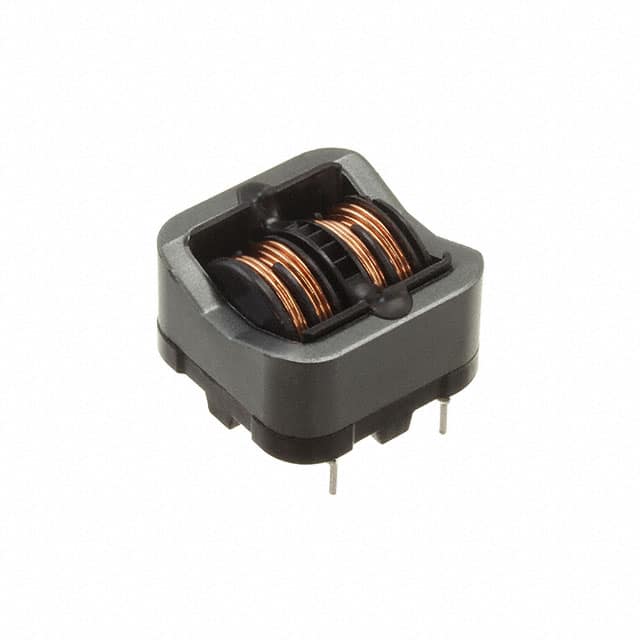

SSRH24NH-30145 The Yageo SSRH24NH-30145 is a common mode choke with a 14.5 mH inductance and a 3A current rating. It features through-hole mounting and a 250V voltage rating.
Mfr Part #:

SSRH24NH-30145

Available from 1 distributors
Mfr Name: Yageo
Yageo
The Yageo SSRH24NH-30145 is a common mode choke with a 14.5 mH inductance and a 3A current rating. It features through-hole mounting and a 250V voltage rating.
✓ Total Stock: 243 pcs
$ Price Range: $0.99

SSRH24NH-30145 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
243 pcs
On Request
243 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSRH24NH-30145 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
Height (Max)
Inductance @ Frequency
Lead Style
Length
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
Width
View Similar Products (0)

SSRH24NH-30145 Description

Short technical summary and product information.

This Yageo SSRH24NH-30145 is a common mode choke designed for filtering applications. It offers an inductance of 14.5 mH at 10 kHz and can handle a maximum current of 3A. The choke is rated for a voltage of 250V and operates within an temperature range of -25°C to 120°C.



Featuring a through-hole mounting type, this component comes in a vertical package with 4 PC pins. Its dimensions include a length and width of 25.50mm and a maximum height of 18.00mm. The device has two lines and is compliant with RoHS3 standards.

SSRH24NH-30145 Quick Information

Product Type: Common Mode Choke
Series: SSRH24NH
Canonical Name: Yageo SSRH24NH-30145 Common Mode Choke
Subcategory: Filters

SSRH24NH-30145 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSRH24NH-30145 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSRH24NH-30145 Features

  • Common mode choke with 14.5 mH inductance.
  • Rated for 3A maximum current.
  • Operates at 250V voltage.
  • Through-hole mounting type.
  • Wide operating temperature range.

SSRH24NH-30145 Applications

  • Used for noise suppression.
  • Suitable for power line filtering.
  • Ideal for EMI reduction.
  • Applicable in various electronic circuits.

SSRH24NH-30145 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the SSRH24NH-30145?

-25°C to 120°C.

What is the voltage rating of this common mode choke?

250 V.

What is the package type of the SSRH24NH-30145?

Through Hole, Vertical 4 PC Pin.

What is the inductance value of the SSRH24NH-30145?

14.5 mH at 10 kHz.

What is the current rating of the SSRH24NH-30145?

3 A.

How many lines does the SSRH24NH-30145 have?

2 lines.

What are the dimensions of the SSRH24NH-30145?

25.5 mm x 25.5 mm x 18 mm (L x W x H).
