| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
292 pcs
|
292 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Halogen Free | |
| Insertion Depth (Mating) | |
| Insulation Color | |
| Insulation Height | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles (for 10µ\" Au plating) | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

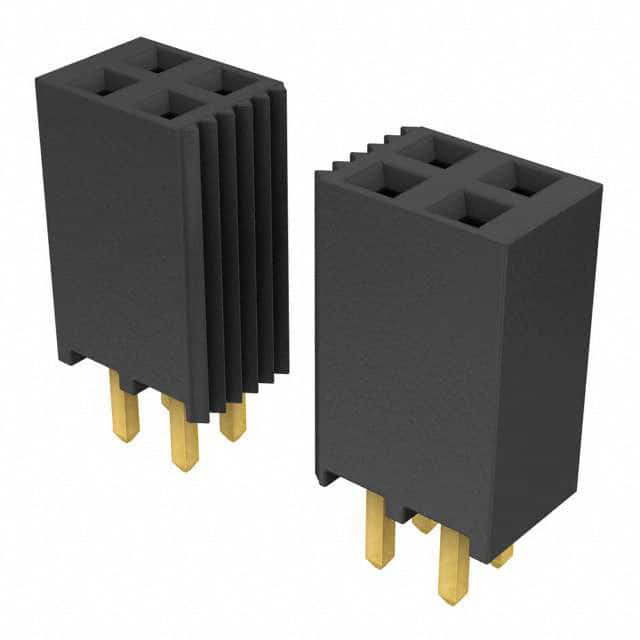

The Samtec SSQ-105-01-G-D is a 10-position, double-row receptacle from the SSQ series. It features a 2.54mm (0.100") pitch and row spacing, making it suitable for board-to-board or cable applications. The connector uses a push-pull fastening type and is terminated via through-hole solder leads with a square tail design.
Electrical ratings include a current rating of 6.3A per pin (with 2 pins powered) and a voltage rating of 465VAC or 655VDC. The operating temperature range is -55°C to +125°C. The contacts are made of phosphor bronze with a 20.0µin (0.51µm) gold finish, and the insulator is black liquid crystal polymer with a UL94 V-0 flammability rating.
The connector is designed for a mating insertion depth of 3.68mm to 6.35mm. It is lead-free solderable and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.20 | $2.20 |
| 50+ | $2.13 | $2.13 |
| 100+ | $1.89 | $1.89 |
| 500+ | $1.67 | $1.67 |
| 1,000+ | $1.55 | $1.55 |
| 2,000+ | $1.28 | $1.28 |
| 5,000+ | $1.13 | $1.13 |
| 10,000+ | $1.09 | $1.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSQ-105-01-G-D has 10 positions in 2 rows, with all positions loaded.
The pitch is 2.54mm (0.100") and the row spacing is also 2.54mm (0.100").
The current rating is 6.3A per pin with 2 pins powered.
The voltage rating is 465VAC and 655VDC.
The mounting type is through hole with solder termination.
The operating temperature range is -55°C to +125°C.
The contacts are phosphor bronze with a 20.0µin (0.51µm) gold finish.
